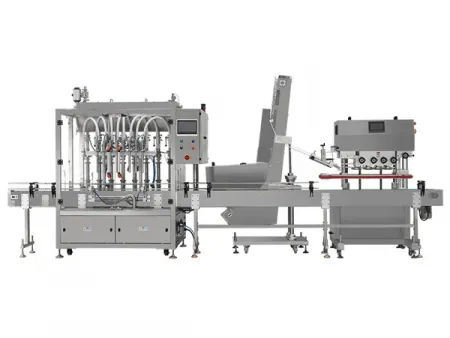

Automatic Servo-Driven Filling & Capping Machine
Request a Quote
Applications
The automatic servo-driven filling and capping machine is suitable for filling low- and medium-viscosity liquids. It is used in chemical, pharmaceutical, agrochemical, cosmetic, and food industries.
Features
- Servo-driven piston filling system with nozzle lift
- The machine frame is made of 304 stainless steel and liquid-contact parts are made of 316 stainless steel
- Sealing rings can be selected according to product properties
- PLC LCD touchscreen control system
- Filling volume is adjustable via touchscreen with storage of up to 100 filling recipes
- Bottle size changeover without replacing parts
- Intelligent no-container-no-fill algorithm
- Support of multiple filling cycles
Details
- APFL-840S Filling Module

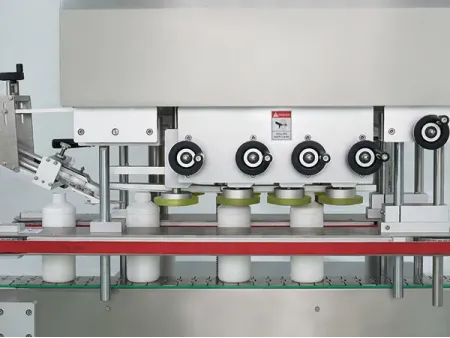

- APCM-1208 Capping Module I
- APCM-1208 Capping Module II
Specifications
APFL-840S Capping Machine
| Model | |||
| Filling Volume | 100 ml – 20 L (Max. single filling volume: 2000 ml); 10 fills, max. filling volume: 20 L | ||
| Power Supply | 1Ph/220V, 50/60HZ | ||
| Filling Accuracy | ±0.5% | ||
| Filling Method | Servo-driven Piston | ||
| Number of Filling Heads | 4 | 6 | 8 |
| Filling Speed | 4-60 BPM | 8-90 BPM | 10-120 BPM |
| Compressed Air | 0.6 MPa | ||
APCM-1208 Capping Machine
| Applicable Bottle Neck Diameter | Φ35-100mm |
| Applicable Cap Diameter | Φ12-50mm |
| Production Speed | 0-100 BPM |
| Power Supply | 1Ph/220V, 50/60HZ |
| Machine Dimensions | L2000×W850×H2050mm |
| Machine Weight | 560kg |
