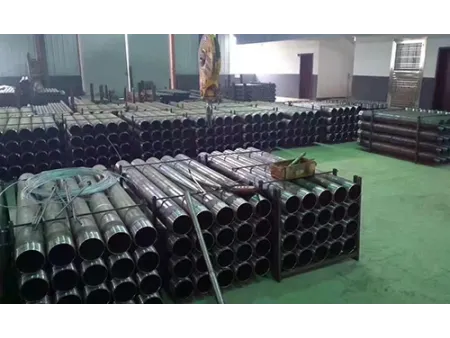

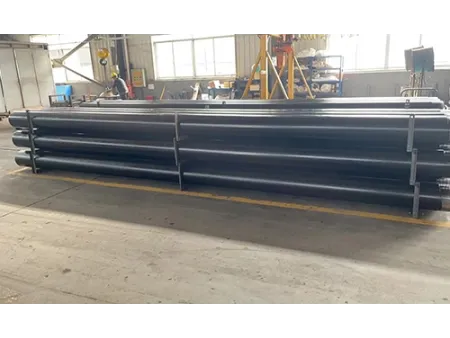

- The casing body is manufactured from high-quality R780 or P110 steel, while the threaded joints are made of premium 42CrMo alloy steel.
- Arc-shaped threads are adopted to reduce thread engagement stress, significantly lowering the risk of thread seizure and improving ease of disassembly.
Suitable for drilling projects that require casing support to stabilize the borehole wall.
| Model (D) | Casing tube assembly | Casing tube | Joint | ||||||
| Model | Length, m | Weight, kg | Model | Thickness, h | Weight, kg | Model | Thickness, h | Weight, kg | |
| | | 1 to 9 | 18.9 | | 7 | 16.4 | | 7 | 2.5 |
| | | 1 to 9 | 18.5 | | 6.5 | 15.5 | | 6.5 | 3 |
| | | 1 to 9 | 24.4 | | 8 | 19.5 | | 10 | 4.9 |
| | | 1 to 9 | 31.9 | | 8 | 25.5 | | 10 | 6.4 |
| | | 1 to 9 | 33.9 | | 8 | 26.5 | | 10 | 7.4 |
| | | 1 to 9 | 40.9 | | 8 | 32 | | 10 | 8.9 |
| | | 1 to 9 | 44 | | 8 | 35 | | 10 | 9 |
| | | 1 to 9 | 51.5 | | 8 | 38.5 | | 10 | 13 |
| | | 1 to 9 | 65 | | 8 | 48.8 | | 10 | 16.2 |
| Other specifications are available upon request. | |||||||||
Selection should be based on the drilling program requirements. The casing diameter and size are determined according to the designed borehole parameters. For shallow holes, standard male-female threaded casing pipes are sufficient. For deep or ultra-deep holes, casing pipes with welded joints are recommended, as they effectively reduce the risk of casing failure during drilling.
Before use, grease should be applied to the threads to prevent dry friction. After use, casing pipes should be thoroughly cleaned, with particular attention to removing soil or fine sand from thread grooves. After cleaning, oil should be applied to the threads to prevent corrosion. Casing pipes should be stored in a dry and well-ventilated environment.
