CNC Plasma Cutting Machine
Request a Quote
Designed with precision cutting quality, our CNC plasma cutting machines can deliver efficient and accurate plate processing. These steel plate processing machines are engineered for high-duty applications and can be equipped with premium plasma power sources including Hypertherm (USA), Thermal Dynamics (USA), Kjellberg (Germany), or high-quality domestic brands.
To meet diverse industrial requirements, we offer several specialized cutting environments:
- Dry Plasma Cutting: Ideal for standard fabrication workflows.
- Semi-Dry & Underwater Cutting: Effectively reduces dust, noise, and heat-affected zones (HAZ).
- Fine Plasma Cutting: Delivers superior edge quality and hole precision.
Specifications
| Model | ||
| Drive way | single drive,24KG/M rail | double drive,38KG/M rail |
| Rail span(m) | 3-4 | 3-8 |
| Valid cutting width(m) | 2.2-3.2 | 2.2-7.2 |
| Torch lift stroke(mm) | 170 | |
| Rail length | according to the requirement of customer | |
| Flame cutting speed(mm/min) | 50-1000 (setting as per cutting technology) | |
| Plasma cutting speed(mm/min) | 350-6000 | |
| Fast return speed(mm/min) | 6000 | |
| Flame cutting thickness(mm) | 6-100（dingle torch）,piercing thickness≤80 | |
| Plasma cutting thickness | recommend suitable plasma source according to the requirement of customer | |
| Flame cutting material | MS | |
| Plasma cutting material | MS,Aluminum,SS | |
| Input power | single phase AC220V,50HZ,2KVA | |
| Intersection point deviation(mm) | ≤0.5(800×800 industry standard prescribed figure lineation) | |
| Diagonal error(mm) | ≤0.5(300×300 square lineation) | |

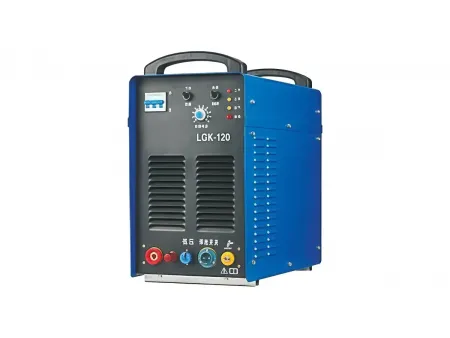

Plasma Power Source
| Model | | | |
| Max. Piercing Thickness (mm) | Mild Steel (MS) | 15 | 25 |
| Stainless Steel (SS) | 12 | 20 | |
| Max. Cut-Off Thickness (mm) | Mild Steel (MS) | 25 | 45 |
| Stainless Steel (SS) | 16 | 35 | |
| Recommended Cutting Thickness (mm) | Mild Steel (MS) | 12 | 20 |
| Stainless Steel (SS) | 10 | 16 | |
| Input Power (KVA) | 25.7 | 40 | |
