CNC Plasma Cutting Machine GSII-L Series
Request a Quote

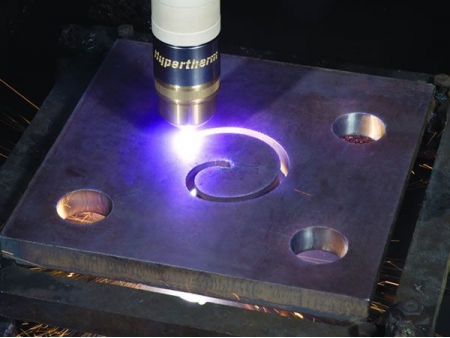

The GSII-L series plasma cutting machine is made in Europe and can provide a wide range of capabilities, including conventional high-speed plasma cutting, high definition plasma cutting and plasma marking.

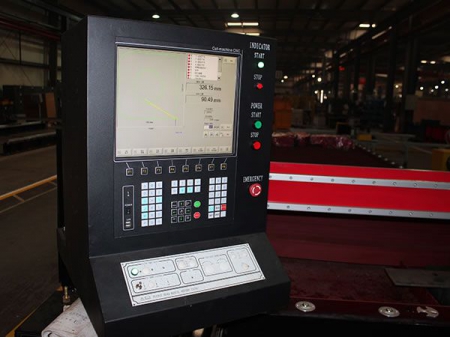

The machine is equipped with the Hypertherm Micro Edge Pro touch screen CNC system, in order to realize the functions such as Cutpro wizard, cutting optimization tips and built in process databank. The machine allows the operator to select the material type and thickness.
Standard Configuration

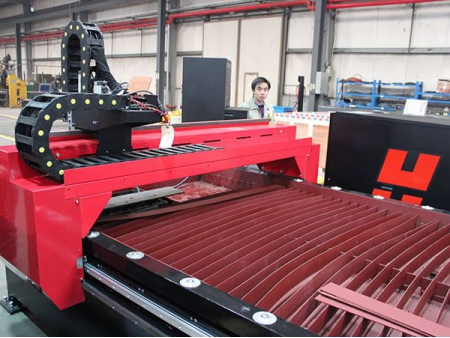

- Portable monoblock structure with small floor space
- Easy installation
- Dual side AC servo motor with direct planetary gear box, helical rack and pinion drive system
- Precision linear rail guide ways in X and Y axis

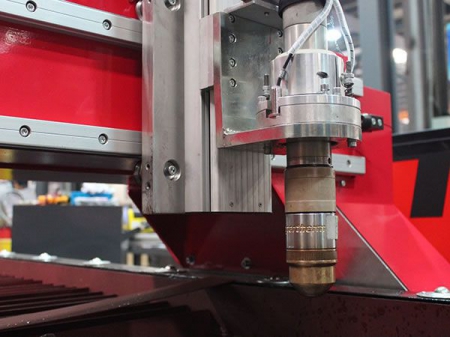

- High speed torch lifter with automatic arc voltage height control
- Fully enclosed hose and cable carriers
- Hypertherm Micro Edge Pro CNC system
- Integrated downdraft table with CNC programmable multi zone selection
- Integrated dross bins
- Magnetic torch anti-collision protection system
- Laser pointer for plate alignment
- CE safety specifications
Options
- Hypertherm Edge Pro CNC
- Portal extension
- Tube Rotator for round pipes 30... 140 mm, square pipes 20x20mm ... 100x100 mm
- Movable drawer to collect parts and dross
- Available with Hypertherm Powermax series, Maxpro200 series and HPRXD series plasma sources
- True Hole technology (with HPRXD auto gas plasma source)
- Fume extraction filter
Specifications
| Type | Table Width | Table Length | Height Under Torch | Width x Length x Height | Table Height | X Axis | Y A xis | Weight | Max. Positioning Speed(X-Y) | Total Power (without Plasma) |
GSII-L | mm | mm | mm | mm | mm | mm | mm | kg | m/min | KW |
30-15 | 1500 | 3000 | 150 | 1850x3420x1710 | 800 | 1000 | 2000 | 2050 | 30 | 4 |
30-15 | 1500 | 3000 | 150 | 2350x4420x1710 | 800 | 1500 | 3000 | 2550 | 30 | 4 |
40-20 | 2000 | 4000 | 150 | 2850x5420x1710 | 800 | 2000 | 4000 | 3300 | 30 | 4 |
60-20 | 2000 | 6000 | 150 | 2850x7420x1710 | 800 | 2000 | 6000 | 4600 | 30 | 4 |
*ACCURL offers consumables, parts and Hypertherm materials at very competitive prices.
