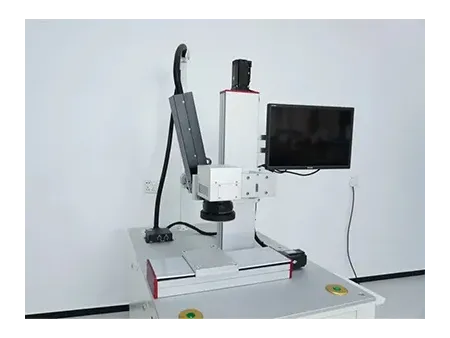

Galvo Fiber Laser Welding Machine
- Working area: 200x200x200mm
- Wavelength: 1064nm
- Pulse Width : 0.3-20ms
- Repeatability : ±0.01mm
Galvanometer scanning laser electric welding machine can weld 2000 lugs (multiple points) per hour. The welding speed reaches 1-20 points / s, which effectively shortens the welding time. Therefore, it is especially suitable for spot welding of ultra-thin stainless steel circuit board inserts such as mobile phone shield, metal mobile phone or metal capacitor shell, hard disk, micromotor and sensor, especially the welding of cylindrical battery lug.
| Laser Power | QCW-75(Peak Power:750Watts) |
| QCW-150(Peak Power:1500Watts) | |
| Laser Type | QCW fiber laser source |
| Wavelength | 1064nm |
| Max Welding Thidkness | 0.1-2.0mm |
| Gross Powe | ≤13kw |
| Voltage | 220V 10%/ 50Hz/ 30A |
| Pulse Width | 0.3-20ms |
| Frequency | 1-100Hz |
| Spot Adjustable Range | 0.2-2mm |
| Positioning | Red Indicator |
| Repeatability | ±0.01mm |
| Control System | PLC or PC (CNC2000） |
| Working area | 200mmx200mmx200mm |
It is mainly used for high-speed spot welding of sheet metal materials, such as copper foil, stainless steel, nickel plate etc. It is also applicable to spot welding or sealing welding of various kinds of batteries, cell phone shielding cover, cell phone housing, capacitor products, computer hard disk, micromotor, sensor and other electronic industries. According to the welding requirements of the product, multi-channel output, time-sharing or energy-sharing can be adopted and used in conjunction with the assembly line to improve the welding efficiency.
(Material: stainless steel; penetration: 0.6MM)
(Material: stainless steel; penetration: 0.3MM)
(Material: stainless steel; penetration: 0.8MM)
(Material: aluminum copper sheet; penetration: 0.6MM)

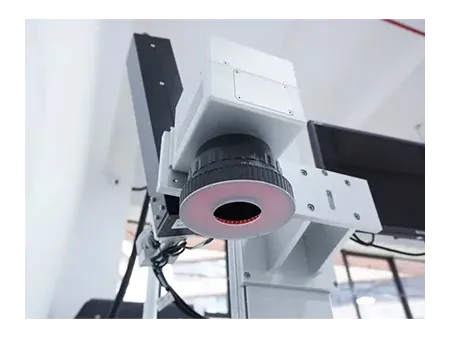

Galvanometric System
The high-speed scanning galvanometer is used for laser positioning, and the speed can reach 7000mm/s. The idle time between welding positions is greatly reduced, thereby greatly improving production efficiency;
Field Lens
Featuring an air-spaced design and anti-reflective coating, our compact Fθ field lens ensures a excellent throughput and durability with less than 1% distortion.
Precision Welding
Stable and continuous output, spot welding, butt welding, stitch welding, sealed welding, etc.: small welding width, small heat-affected zone, smooth and beautiful welding, high power density
