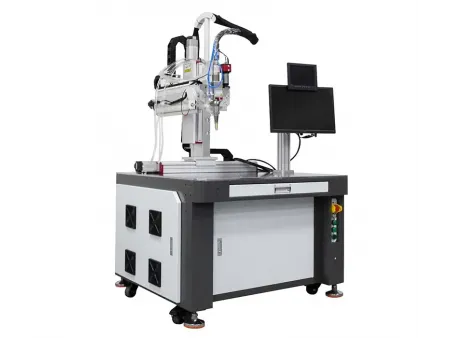

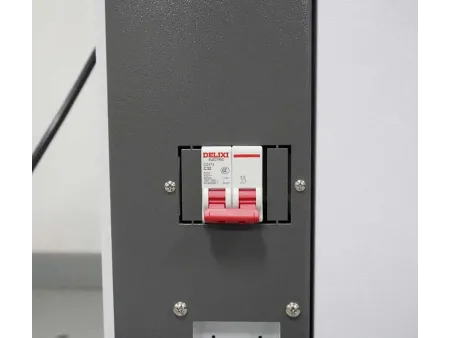

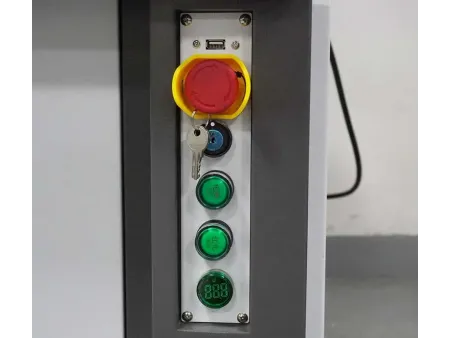

Automatic Fiber Laser Welding Machine
- Laser wavelength 1064nm
- Welding speed 0-20m/min (intelligent adjustable)
- Cooling method water cooling
- Machine weight 360kg
The automatic fiber laser welding machine (platform type) is designed specifically for large-scale manufacturing scenarios, with core advantages of full automation, high stability, and millimeter-level precision. It employs a high-power fiber laser, featuring a spot diameter of ≤0.1mm and precisely controllable heat input (fluctuation <2%). This enables high-speed seamless welding of materials such as stainless steel, aluminum alloys, and titanium alloys, achieving weld strengths of over 95% of the base material with smooth, oxidation-free surfaces. The equipment integrates an intelligent motion platform and a CCD vision positioning system, supporting offline programming and real-time correction, with a repetitive positioning accuracy of ±0.02mm. It is suitable for precision welding demands in applications like automotive components, battery trays, and 3C electronics. Its modular structure (total footprint <5m²) allows for seamless integration into smart production lines, with a single machine daily capacity exceeding 3000 pieces and a yield rate of ≥99.5%, making it the preferred tool for quality and efficiency enhancement in high-end manufacturing.
Stainless steel, aluminum alloy, copper, brass, galvanized sheet, nickel-plated parts, and dissimilar metals such as copper-aluminum composites, steel-aluminum hybrid structures, etc.

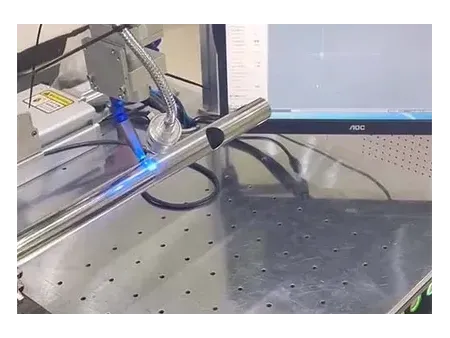

- Stainless steel round tube laser welding

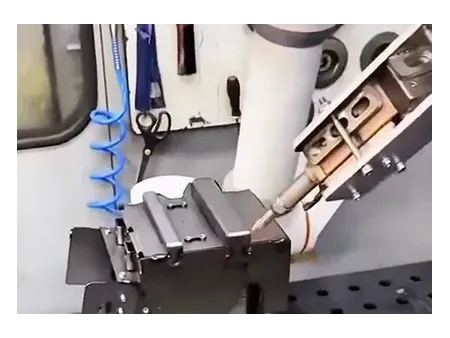

- Complex metal parts laser welding

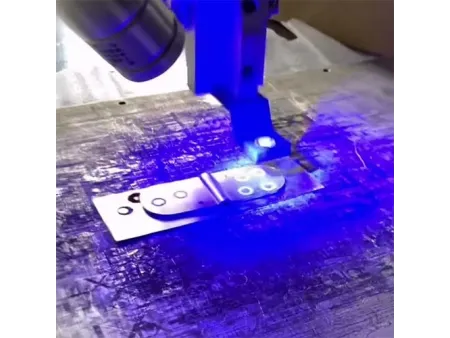

- Sheet metal laser welding
- Technical Data
- Configuration
- FAQ
- Why Us
- Laser type fiber laser
- Laser wavelength 1064nm
- Laser power 1500W, 2000W, 3000W
- Welding thickness 0.1-6mm (stainless steel/aluminum alloy)
- Laser spot size adjustment 0.1-5mm
- Aiming & positioning CCD and red light
- Welding speed 0-20m/min (intelligent adjustable)
- Fiber length 10m
- X/Y/Z axis travel 500mm/300mm/300mm
- Worktable size 1300×1000mm
- Power supply 220V/50Hz ±10%, total power ≤3kW
- Cooling method water cooling
- Machine dimensions 1000×950×1720mm (chiller 450×590×780mm)
- Package size 1750×1050×1800mm
- Machine weight 360kg
- Package weight 400kg
- 1000W laser powerWelding thickness ≤2mm (depends on material)
- 1500W laser powerWelding thickness ≤3mm (depends on material)
- 2000W laser powerWelding thickness ≤5mm (depends on material)
Fiber laser source
We provide renowned domestic and international brand laser sources for our equipment, such as Raycus, JPT, MAX, SUPER, and IPG; these feature high pump conversion efficiency, low power consumption, and excellent beam quality.

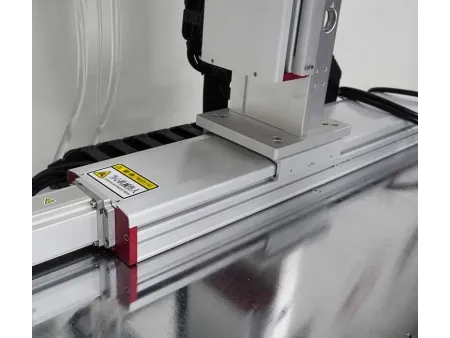

Three-axis precision motion platform
Utilizes Yaskawa/Hiwin servo motors and ball screw transmission, offering a repetitive positioning accuracy of ±0.01mm and an empty travel speed of 500mm/s. It supports complex trajectory welding, such as helical and curved seams.
CCD vision positioning system
A megapixel camera coupled with image algorithms enables dynamic positioning at a motion speed of 2m/s with an error of ≤0.01mm, solving the efficiency issues of traditional static positioning.
QBH welding head
The gun head, equipped with replaceable gas nozzles (e.g., 30°, 60°, 90° nozzles), easily handles complex positions like deep cavities and corners, achieving precise welding at any angle.
Control software
Features preset welding parameters, supports offline programming and real-time monitoring, and allows for AutoCAD/DXF file import to generate welding paths with one click, enabling novice operators to get started in 1 hour.
Safety goggles
Specifically designed for fiber laser wavelengths (e.g., 1064nm, 1070-1100nm), with an Optical Density (OD) reaching OD4 to OD7 , effectively attenuating laser energy to below safe thresholds. They balance clear vision with safety protection and reduce operational fatigue.
Tool box
A tool set is provided free with the equipment, with hex key tools, copper nozzles, protective lenses, etc., separately packaged to prevent transport wear and tear, and for clear visibility and improved operational efficiency.
Copper nozzles
Made from high-purity red copper or tungsten-copper alloy, with electrical conductivity up to 98% IACS and a melting point of 1083℃. They can withstand high-temperature oxidation during continuous welding, extending their service life by over 30% compared to ordinary alloy nozzles.
Protective lenses
Made from JGS1 quartz or ZnSe zinc selenide, with light transmittance ≥99.8% and laser damage threshold >15J/cm². They are suitable for high-power equipment above 2000W, reducing energy loss. Double-sided anti-reflective coating reduces reflectivity to below 0.2%, preventing secondary light pollution.
Water Chiller
- Protective Lenses
- Copper Nozzles
- Welding Wire
