H-Beam Flange Straightening Machine
Request a Quote
Watch Videos
H-beam flange straightening machine is specialized equipment designed to correct thermal deformation in H-beam flanges caused by the welding process.
During the H-beam welding process, concentrated heat input inevitably causes the flange plates to bend and deform. Our H-beam flange straightening machines are specifically designed to restore these plates to their required specifications. We offer two primary categories to suit different operational needs:

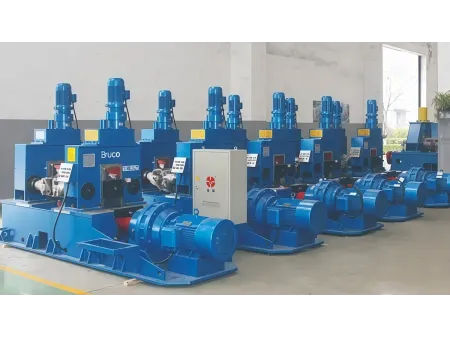

- Mechanical Straightening Machines: Feature a simple, reliable structure that is easy to operate, making them ideal for light-duty steel applications.

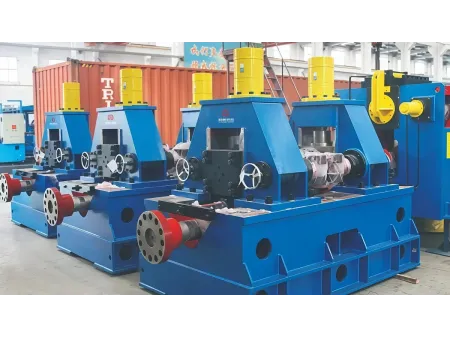

- Hydraulic Straightening Machines: Provide high-capacity straightening and a high degree of automation, optimized for heavy-duty structural steel.
Specifications
| Type | Mechanical | Hydraulic | ||
| Model | ||||
| Flange Thickness (mm) | ≤40 | ≤60 | ≤60 | ≤80 |
| Applicable Material Thickness (Q345) (mm) | 40 | 60 | 60 | 80 |
| Flange Width Range (mm) | 150-800 | 200-1000 | 200-1000 | 300-1200 |
| Straightening Speed (m/min) | 17 | 6 | 6.3 | 6 |
| Machine Power (kW) | 24.2 | 15 | 41.4 | 41.4 |
| Min. Web Height (mm) | ≥160 | ≥200 | ≥350 | ≥480 |
Key Features
-
- Precision Adjustment The lower straightening roller of the main machine is equipped with a measurement scale, ensuring convenient and accurate positioning.
-
- Durability: Straightening wheels and active rollers are fabricated from high-quality alloy steel and undergo specialized heat treatment for long-term wear resistance.
