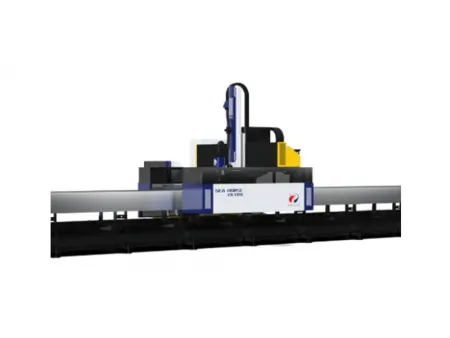

RHINO Series H-Beam Laser Cutting Machine
Laser cutter system for production of structural steel sections
The RHINO series (12-20kW) H-beam laser cutting machine utilizes the esteemed ELEN Group's 3D five-axis cutting system to deliver unmatched precision and efficiency in the cutting process. These machines are engineered for various cutting tasks, adept at processing H-beams, I-beams, steel channel, and steel angle. Designed for ease of use, they enable direct generation of NC code, significantly boosting production efficiency. Furthermore, the RHINO series is equipped with versatile communication protocol support, allowing seamless integration with MES systems. This capability offers our customers sophisticated and tailored steel cutting solutions, enhancing the operational excellence of industries requiring high-precision metal processing.
- Laser power12,000W-20,000W
- Linear motion axis repeatability±0.03mm
- Maximum speed of linear motion axis40m/min
- Applicable materialsSuitable for H beam, I beam, steel angle, steel channel, etc.
As a leader in the Chinese laser industry, PENTA LASER specializes in the design and manufacture of high performance laser machines for a wide range of industries, including automotive, shipbuilding, agricultural machinery. Contact with us for a full custom laser engineering solution.
- Structural Steel
- Shipbuilding
- Automotive
- Aerospace
- Construction
- Heavy Machinery
- Energy Equipment
- Metalworking
| Laser power | 12,000W -20,000W |
| H beam length | 12000mm |
| H beam web width | 600mm/800mm/1200mm |
| H beam flange width | 300mm/400mm/600mm |
| Linear motion axis repeatability | ±0.03mm |
| Maximum speed of linear motion axis | 40m/min |
| Maximum loading capacity | 350kg/m, 360 kg/m, 450kg/m |
- ELEN Group's 3D five-axis cutting system ensures unmatched cutting precision and efficiency.
- Tailored cutting solutions specifically for steel materials, offering custom cutting services for steel manufacturers.
- Excel in executing intricate cutting tasks such as opening, locking, and mouth cutting for various profiles.
- Designed for user convenience, the machine supports direct generation of NC code.
- The machine supports many communication protocols, with compatibility with MES systems for streamlined operations.
- The RHINO series (12-20kW) H-beam laser cutting machine can be equipped with an automatic loading and unloading mechanism to reduce manual labor and enhance throughput.
- It features a servo-controlled positioning mechanism that can securely clamp and accurately position the H-beam, ensuring exceptional precision and stability throughout the cutting process.
- Designed to deliver high-quality bevel cuts, the machine is capable of achieving angles up to 45° on the B-axis and up to 90° on the C-axis, facilitating intricate cutting needs with utmost accuracy.
