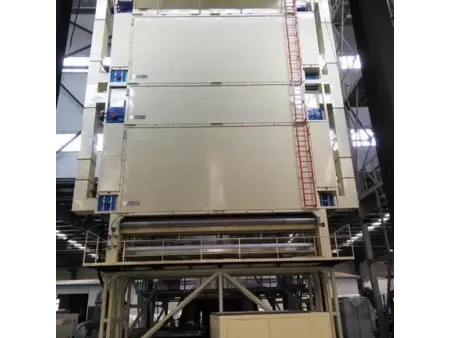

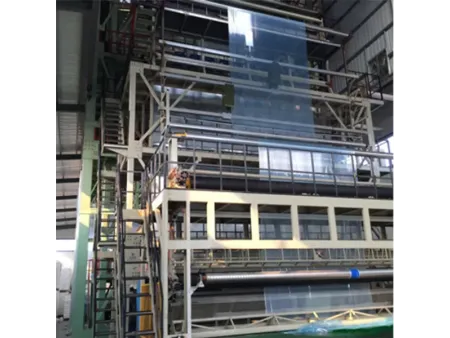

High-Transparency Greenhouse Film Blowing Machine (3–5 Layers PO Film)
Agricultural Film Production
Co-extrusion blown film extrusion line with integrated coating and drying systems for producing PO films with ≥92% transparency and long-term anti-fogging
The plastic film machine is designed for producing high-transparency PO greenhouse films using advanced multi-layer co-extrusion technology. PO films were originally developed in Japan using high-grade polyolefin materials combined with specialized additives, offering excellent uniformity, stability, and film performance. After the technology was introduced to China, the production process evolved to include coating and drying stages, along with precise material ratio control for five-layer structures.
This model is a specialized, high-performance greenhouse film blowing solution focused on PO high-transparency anti-fog greenhouse films. It integrates multi-layer co-extrusion, corona treatment, coating, and drying systems to ensure high-level functional performance. The machine allows precise material formulation using ethylene, propylene, and related blends to achieve outstanding film properties. The resulting films deliver light transmission ≥92%, long-lasting anti-fog performance (over 12 months), strong heat retention (temperature increase of 5–7°C inside the greenhouse), excellent aging resistance (service life 4 to 6 years), and stable weather durability. In addition to greenhouse coverings, the machine can also produce small batches of PO packaging films when required.
PO High-Transparency Anti-Fog Greenhouse Film
- Inner anti-fog coating layer and outer aging-resistant layer
- Abrasion-resistant and high tensile strength
PO Packaging Film
- PO High-Transparency Anti-Fog Greenhouse Film Film thickness: 0.1-0.2mm
Light transmittance: ≥92%
Anti-fog duration: 3-5 years (same as film service life)
Thermal insulation performance: 3-5℃ higher than conventional films
Tensile strength: ≥22MPa
Service life: 3-5 years (continuous use) - PO Packaging Film Film thickness: 0.05-0.1mm
Light transmittance: ≥90%
Application: Food preservation and small product packaging - Key Advantages of PO High-Transparency Anti-Fog Greenhouse Film High transparency (≥92%): Improves light utilization efficiency and enhances crop photosynthesis
Long-lasting anti-fogging: Lifetime anti-fog performance, preventing light reduction and crop disease risks
Excellent thermal insulation: Stabilizes greenhouse temperature in low-temperature conditions and extends crop growth cycle
Superior aging resistance: 3-5 years service life, significantly longer than conventional greenhouse films (approx. 1 year)
High tensile strength: Resistant to wind tearing and damage from agricultural operations
Raw material handling unit
Includes a material mixer for precise formula proportioning, automatic feeding system, and a material dryer for high-moisture raw materials.
Extrusion unit
Equipped with 3–5 single-screw extruders (screw diameter 45–65 mm, suitable for PO materials) and a multi-layer co-extrusion die head with flow channels designed for greenhouse films
Forming unit
Blown film air ring with ±1°C temperature control precision to ensure uniform film thickness, together with a stable cooling and shaping system
Anti-fog functional unit
Corona treater (surface tension ≥40 dyn/cm to improve coating adhesion), anti-fog coating tank with circulation and precise spray coating control, and a constant-temperature drying oven (60–85°C) to ensure even and reliable coating film formation
Rewinding unit
Automatic rewinder with tension control to prevent deformation, supporting rewinding speeds of 3–18 m/min with frequency control to match extrusion speed
Control system
PLC control cabinet and touchscreen operation panel capable of storing 10 greenhouse film production recipes, plus a fault alarm and protection system
