Offline Carton Inspection Machine
Request a Quote
Diana Eye 55
Watch Video
Diana Eye 55 is an offline carton inspection machine designed for high-grade packaging quality control. Developed based on our inspection technology and manufacturing experience, it is used to detect printing and finishing defects on premium folding cartons and packaging products. The inspection system can identify defects such as hickeys, scratches, streaks, color variation, register deviation, substrate defects, hologram defects, and varnish inconsistencies.
Technical Parameters
| Model | Diana Eye 55 |
| Processable Materials | 90–650 g/m² cardboard |
| Max. Speed | 300 m/min |
| Max. Output (e.g. 90 mm long small-format package) | 80,000 s/h |
| Max. Sheet Size | 550 × 500 mm |
| Min. Sheet Size | 90 × 90 mm |
| Minimum Spot Size | 0.15 mm² (gray value contrast ≥30) |
| Minimum Line Size | 0.25 mm × 5 mm (gray value contrast ≥30) |
| CV | >2.5 |
| Cameras | 4K Color Camera RGB |
| Pixel | 4K |
| Camera Line Rate | 40 k/s |
| Resolution at 550 mm / 300 m/min | 0.13 × 0.15 mm |
| Cameras | 8K Mono Camera B/W |
| Pixel | 8K |
| Camera Line Rate | 80 k/s |
| Resolution at 550 mm / 300 m/min | 0.067 × 0.075 mm |
| Cameras | Area Camera RGB |
| Pixel | 1.2 M |
| Camera Line Rate | 45 fps |
| Resolution at 550 mm / 300 m/min | 0.04 × 0.04 mm |
Features
Blank Ejection
- Faulty blanks can be ejected inline without damaging.
- Defective cartons can be collected again for resorting or re-inspection when needed.
- Reduces unnecessary waste without compromising product quality standards.

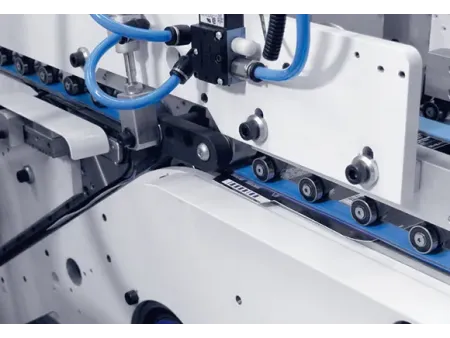

- The suction belt system keeps carton transport stable during inspection.
- Supports up to four top cameras, two area cameras, and one backside camera.
- Camera systems can be retrofitted more easily.
- Darkened inspection window helps reduce direct exposure to active LED lighting.

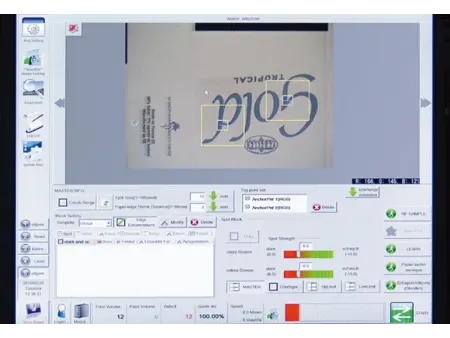

Operator Interface
- Equipped with a 19-inch operator screen for inspection control and monitoring.
- The teaching process helps operators set up more easily.
- Visualization of threshold settings
- Advanced parameter settings are available for more challenging applications.
Image Processing
- GPU and CPU combined computing architecture supports fast processing of large image data volumes.
- Master-slave system for coordinated image processing
- Easy to retrofit
Light Sources
- A specially designed light dome
- Four different illumination modes available
- Helps detect defects on metallized substrates, hot foil stamping, and hologram applications more effectively.
- Aluminum light housing helps maintain stable operating temperature without additional air blowers.
- Adjustable light intensity
Cameras
- 4K color cameras with LED lighting technology are used for top-side inspection.
- Mirror inspection system supports low-angle inspection applications.
- 4K color camera for backside inspection
- High-resolution area cameras are used for detailed inspection of critical areas such as QR codes.
