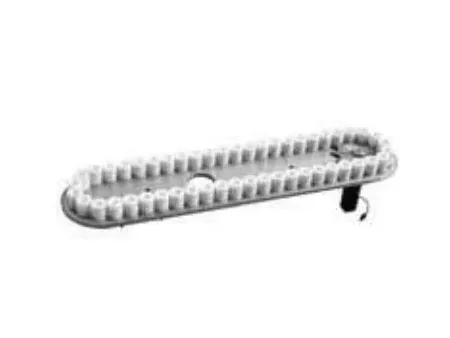

Large-Format Rotary Vacuum Packing Machine, YL-R190/220/260
Request a Quote
Rotary Premade Pouch Vacuum Sealing System
The YL-R190/220/260 vacuum sealed bagging machine is designed for large-format vacuum packaging of poultry and meat products, including braised chicken, roast duck, hams, and other bulk vacuum-sealed items.
- Production Capacity: 10-50 pouches/min (depends on the size of bag)
Auxiliary Equipment
- Rotary Cup Feeder
- Multi-head Weigher
- Bowel Elevator
Pouch Style
- Flat Bag
- Stand-Up Bag
- Zipper Bag
Specifications
| Model | |||
| Capacity | 30 - 50 pouches/min | 30 - 50 pouches/min | 10 - 30 pouches/min |
| Pouch size | Length: 100 - 285mm; Width: 100 - 190mm | Length: 100 - 300mm; Width: 130 - 220mm | Length: 200 - 390mm; Width: 160 - 260mm |
| Packing weight | Max. weight 1kg | Max. weight 1kg | Max. weight 1kg |
| Sealing method | Instant Heat Seal | Instant Heat Seal | Instant Heat Seal |
| Power consumption | 11kW | 11kW | 11kW |
| Power supply | 3-phase 380V 50Hz | 3-phase 380V 50Hz | 3-phase 380V 50Hz |
| Compressed air | 6 - 8kgf/cm², 0.8cm³/min | 6 - 8kgf/cm², 0.8cm³/min | 6 - 8kgf/cm², 0.8cm³/min |
| Machine weight | 3100kg | 3300kg | 3500kg |
| Pouch style | Flat pouch, stand-up pouch | Flat pouch, stand-up pouch | Flat pouch, stand-up pouch |
| Machine dimensions | Length: 2570mm; Width: 2100mm; Height: 1450mm | Length: 2580mm; Width: 2070mm; Height: 1560mm | Length: 2880mm; Width: 2200mm; Height: 1730mm |
Features
- Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings. - Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance. - Minimized Material Loss
Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
