Automatic Rotary Vacuum Packing Machine, YL-R190S
Request a Quote
Premade Pouch Filling and Sealing
The YL-R190S rotary premade pouch vacuum packaging machine is ideal for products requiring flattening and shaping during the vacuum process, such as spiced peanuts, pickled chicken feet, and similar vacuum-sealed snacks.
Auxiliary Equipment

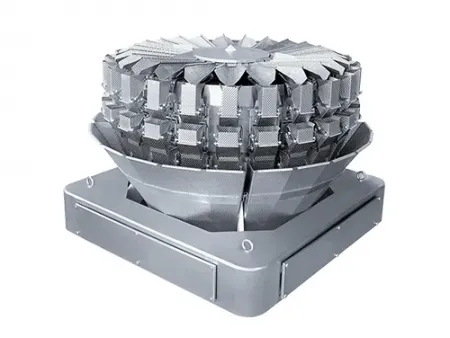

- Multi-head weigher

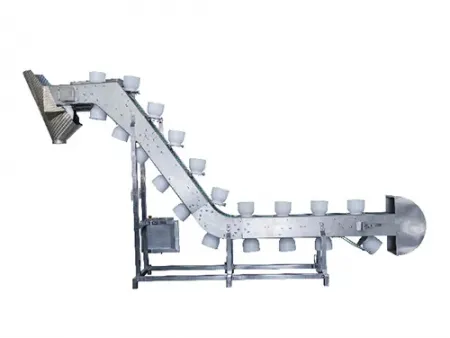

- Bowl Elevator
Pouch Style
Flat Bag
Stand-up Bag
Specifications
| Capacity | 30 - 50 pouches/min |
| Pouch size | Length: 100 - 285mm Width: 100 - 190mm |
| Packing weight | Max. weight 1kg |
| Sealing method | Instant heat seal |
| Power consumption | 11kW |
| Power supply | 3-phase 380V 50Hz |
| Compressed air | 6 - 8kgf/cm², 0.8m³/min |
| Machine weight | 3100kg |
| Pouch style | Flat pouch, stand - up bag |
| Machine dimensions | Regular bag feeding: Length 2570mm, Width 2100mm, Height 1450mm; Horizontal bag feeding: Length 2570mm, Width 2550mm, Height 1450mm |
Features
- Exceptional Stability
Utilizing globally proven mechanical cam-drive technology, the pouch packing equipment ensures rapid and stable operation with a low failure rate and minimal energy consumption. This robust design delivers exceptional durability and wear resistance for long-term industrial use. - Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings.
