High-Speed Automatic Rotary Vacuum Packing Machine, YL-R100/130/160
Request a Quote
Video
Premade Pouch Filling and Sealing
The YL-R100/130/160 vacuum sealed bagging machine is perfectly suited for pickles and preserved vegetables, meat products, and a wide variety of leisure snacks.
- Pouch style: flat pouch, stand-up pouch (doypacks), zipper pouch
- Capacity: 20-110 pouches/min
Auxiliary Equipment

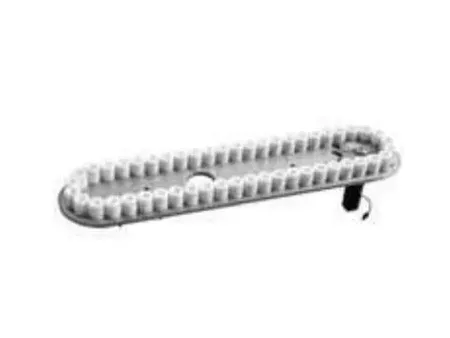

- Rotary Cup Feeder
- Multi-head Weigher

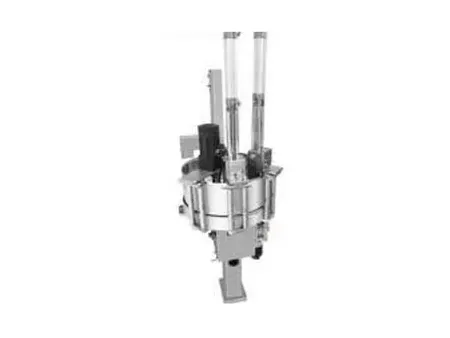

- Telescopic Cup Filler
Specifications
| Model | |||
| Capacity | 20 - 110 pouches/min | 30 - 60 pouches/min | 60 - 80 pouches/min |
| Pouch size | Length: 60 - 180mm; Width: 55 - 100mm | Length: 100 - 200mm; Width: 75 - 130mm | Length: 80 - 240mm; Width: 80 - 160mm |
| Packing weight | Max. weight 500g | Max. weight 500g | Max. weight 500g |
| Sealing method | Instant Heat Seal | Instant Heat Seal | Instant Heat Seal |
| Power consumption | 9.5kW | 7.8kW | 9kW |
| Power supply | 3-phase 380V 50Hz | 3-phase 380V 50Hz | 3-phase 380V 50Hz |
| Compressed air | 6 - 8kgf/cm², 0.8cm³/min | 6 - 8kgf/cm², 0.8cm³/min | 6 - 8kgf/cm², 0.8cm³/min |
| Machine weight | 3300kg | 2500kg | 2700kg |
| Pouch style | Flat pouch, stand-up pouch | Flat pouch, stand-up pouch | Flat pouch, stand-up pouch |
| Machine dimensions | Length: 2500mm; Width: 1750mm; Height: 1780mm | Length: 2220mm; Width: 1820mm; Height: 1450mm | Length: 2500mm; Width: 1850mm; Height: 1780mm |
Features
- Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings. - Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance. - Minimized Material Loss
Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
