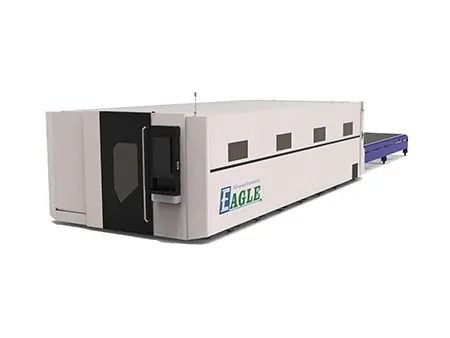

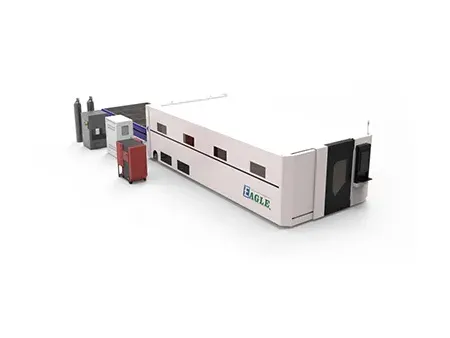

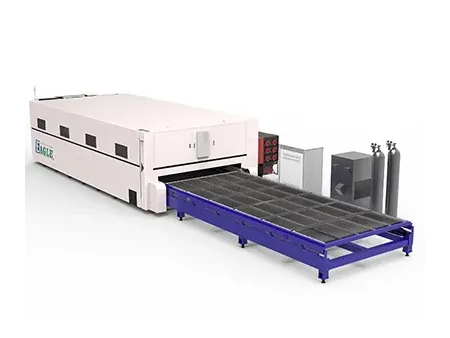

Large Format Fiber Laser Cutting Machine
This enclosed flatbed fiber laser cutting machine is specifically designed for high-speed cutting of various sheet metals. It offers a powerful and reliable laser cutting solution for rapid production, featuring a laser head acceleration of over 1.0G, a spacious working area of 2550×6050mm, and accompanying nesting software. The multi-chamber exhaust system not only ensures a clean working environment by removing fumes and airborne particles but also contributes to the machine's overall efficiency and reliability by maintaining optimal operating conditions.
-
- 10-40mm carbon steel workpiece cutting
-
- 16-40mm stainless steel workpiece cutting
-
- 30mm stainless steel workpiece cutting
-
- 20-40mm carbon steel workpiece cutting
-
- 40mm aluminum workpiece cutting
This fiber laser cutting machine is ideal for applications in metal cutting, electrical switch manufacturing, elevator production, home appliances, kitchenware and utensil manufacturing, tool processing, and other mechanical processing industries.
| Working Area | 2550×6050mm |
| Laser Source | Fiber Laser |
| Laser Power | 30kW/40kW/60kW |
| Max. Speed | 120m/min |
| Dimensions | 15350×4050×2400mm |
| Weight | 15200kg |
- Laser Source
The Max Laser offers exceptionally high beam quality, output power, and electro-optical conversion efficiency. It features a water-cooled, modular design that ensures high reliability, a compact structure, durability, and excellent mobility.
- Laser Laser cutting head
This intelligent laser cutting head is specifically developed for ultra-high-power laser equipment. It is easy to install and set up, featuring dual dust protection to maintain clean and efficient operation.
- Fiber Laser System
The fiber energy is transmitted from the laser source to the laser cutting head through a flexible fiber optic cable. This system does not require reflective mirrors for optical reflection or optical path adjustment. Additionally, the laser cutting head's lens is sealed within the mechanical chamber, preventing dust or particles from accumulating on the lens after operation.
- Water Chiller
This fiber laser cutting machine uses a water-cooled laser source, which is equipped with a high-quality stainless steel circulating water pump that provides high flow rates, high pump head, low noise, and long service life. The plastic water tank and stainless-steel pipes and valves are designed to prevent rust, ensuring a durable and reliable cooling system.
Compared to plasma cutting and oxygen cutting, fiber laser cutting produces less dust, emits weaker light, and generates lower noise levels, making it a cleaner and quieter option for industrial environments.
When selecting a fiber laser cutting machine, you should consider factors such as the material to be processed, the thickness of the material, and the required laser power.
