LED Down Light Assembly Production Line
Request a Quote
The LED down light assembly production line has a production efficiency of 800pcs/h. Its highly automated operation greatly helps you improve work efficiency and reduce labor costs.
Adopting modular design and excellent motion control system, this production line has high adaptability and flexibility. All the components in this system are processed by our own factory, which guarantees high consistent quality of the parts, ensuring high stability during equipment operation.
Production process
Operation details

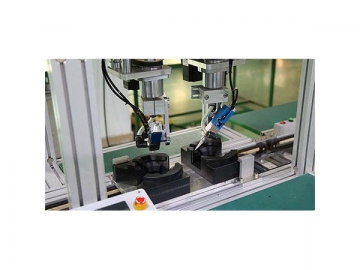

- Automatic screw fastening on the spring bracket
- Automatic qualified products loading on the carrier

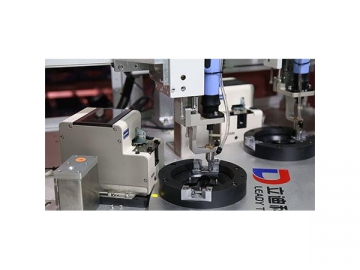

- Automatic screw fastening on the LED chip board
- Automatic lamp shell dispensing

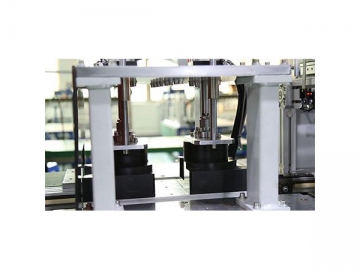

- Automatic lamp shell pressing
Technical parameters
| Overall dimension | L12000*W2200*H2600mm |
| Work surface height | 900mm |
| Structure | Rotary Turntable + Ring Linear Lift |
| Type | Downlight |
| Design capacity | 1000pcs/h |
| Actual capacity | 800pcs/h |
| Rated voltage | AC220V 50-60HZ |
| Rated power | 20Kw |
| Rated pressure | 0.5-0.7MPa |
| Total gas consumption | 200L/Min |
| Working temperature range | -10℃-45℃ |
| Transmission mode | Cam Indexer + Speed adjustment Chain |
| The number of workers | 7 |
| Gross weight | 4000Kg |
