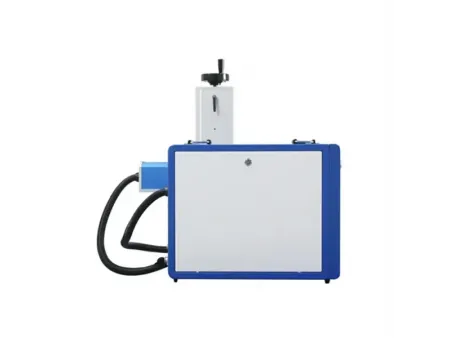

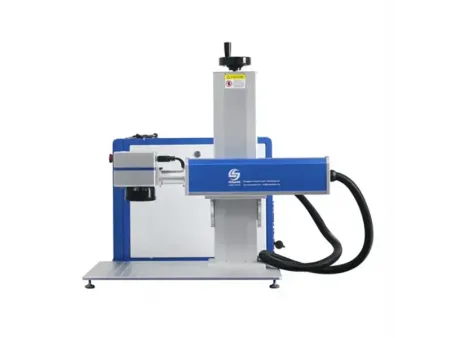

Mini Laser Marking Machine
- Output Power: 20 / 30 / 50 / 100W
- Engraving Range: 110×110 — 300×300 mm
- Repeated Accuracy: ±0.003mm
- Engraving Speed: 7000mm/Second
This model Fiber Laser Marking Machine LS-YLP-20L delivers superior performance and reliability, and provides an industrial marking solution for product identification and trace-ability, and boasts for its fast marking speed, good marking effect and high efficiency to meet the demand of mass production.
For this series Fiber Laser Marking software system, it is allowed customers to mark series numbers, bar codes, 2D Data Matrix and graphics on the widest variety of materials, including most metal materials, and some nonmetal materials, such as plastic, ceramic…..Furthermore
This model 20W Fiber Laser Marking Machine also enjoys the advantages of easy operation, low running cost, long-term trouble – free working and free from maintenance. All these factors devotes to its capacity to satisfy industrial production.
| Model | |
| Power | 20W,30W,50W,100W |
| Wavelength | 1064nm |
| Beam Quality | M2< 1.3 |
| Output Power | 10%-100%(continuously to be adjusted) |
| Output Frequency | 20KHz-100KHz(continuously to be adjusted) |
| Power Stability(8h) | < ±1%rms |
| Focus Spot Diameter | < 0.01mm |
| Engraving Range | 110*110mm,175*175mm,200*200mm,300*300mm |
| Engraving Depth | 1.2mm |
| Engraving Speed | 7000mm/Second |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.1mm |
| Repeated Accuracy | ±0.003mm |
| System Operation | Windows 10 |
| Cooling Mode | Air Cooling |
| Environment Temperature | 10ºC~35ºC |
| Environment Humidity | 20%-80% |
| Power Requirement | 220V/Sing lephase/50Hz/< 400W |
| Life of Laser Module | 100000Hrs |
- Applicable Industries
It widely used in industries of mobile phone keys, translucent plastic keys, electronic components, integrated circuit(IC),electrical appliances, communication products, sanitary ware, tool parts, knives, watches, glasses, jewellery, auto accessories, luggage buckles, cooking utensils, stainless steel products. - Applicable Materials
All kinds of metal (including rare metal),engineering plastic,electroplating materials,coated materials,spraying materials,plastic and rubber,epoxy resin,ceramics and other materials.
