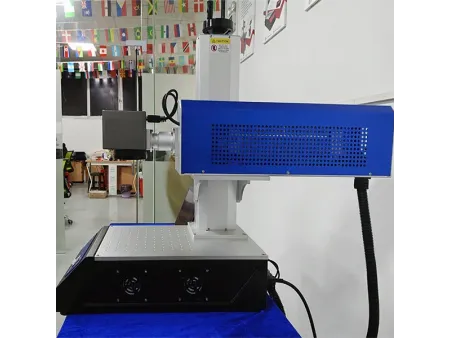

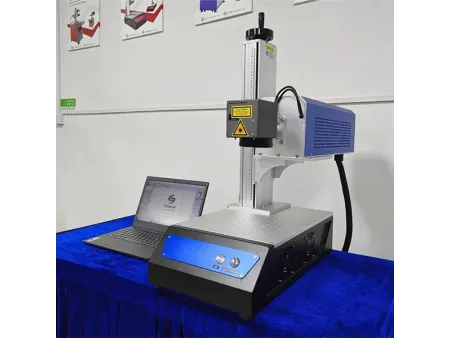

Mini CO₂ Laser Marking Machine
- Laser Power: 30W
- Laser Wavelength: 10.64um / 9.3um
- Repeated Accuracy: ±0.01mm
- Engraving Speed: 300 chars/s
LS-CO2 non-metallic laser marker is controlled by computer, which applies 10.64um laser beam to act on the surface as the predetermined trajectory through beam expansion, focusing and finally controlling the deflection of galvanometer to gasify the surface and achieve engraving effects. Our LS-CO2 series non-metallic laser marker is characterized by good beam pattern, stable-performance system and maintenance-free. It is appropriate to be used in industrial processing sites with high-volume, multi-variety, high speed and high precision continuous production.
| Model | |
| Laser Power | 30W |
| Laser wavelength | 10.64um / 9.3um |
| Beam Quality | M2< 1.2 |
| Output Power | 10%-100% |
| Output Frequency | 20KHz-100KHz |
| Power Stability(8h) | < ±1%rms |
| Focus Spot Diameter | < 0.05mm |
| Engraving Depth | ≤ 5mm(depends on material) |
| Engraving Speed | 300 standard characters/second |
| Cooling Style | Air-cooling/Water-cooling(>50W) |
| Min Line Width | 0.06mm |
| Min character | 0.4mm |
| Repeated Accuracy | ±0.01mm |
| Power Requirement | 220VSingle phase/50Hz/< 4A |
| Marking Range | 110x110mm; 150x150mm; 175x175mm; 200x200mm; 300x300mm |
| Character Type | Letter; Symbols; Bar codes; QR code; Date; Time; Serial number; Random-number; Real-time marking and text. |
| Laser Type | Enclosed RF carbon dioxide laser, four categories of laser product |
It is able to engrave a variety of non-metallic materials and can be widely applied to the laser marking of paper, PVC, rubber, ceramics, acrylic, organic glass, resin, leather, cloth, bamboo, wood crafts.
- Laser Source RF Metal Tube or Sealed Glass Tube
- Laser Galvometer Scanning Head
- Laser Marking Control Card and Software – Latest Version Ezcad with powerful edit function
- Taiwan MW Laser Power Supply
- Taiwan MW Laser Switch Power
- Hispeed Laser – High quality F-theta Lens
- Hispeed Laser – Industrial Computer & Screen
- Hispeed Laser – Two Red Light Pointers for focusing
- Hispeed Laser – Laser Controlling Cabinet with Motorized Z-axis
- Hispeed Laser – Laser Working Plate
- 2 fans,1 Power Unit Jointer
- Foot Switch
- Deliver in plug & play state
- Packing complying with the Export Packing Standard
- Life-long after-sales service;Free consultation & guidance support
- Fitting Parts(Free of Charge):1 set of tools,1 piece of protective googles,1 box of aluminum sheet for testing(100sheets)
