Self-Adhesive Labeling Machines

Automatic labeling machine for applying self-adhesive labels on cylindrical or flat products

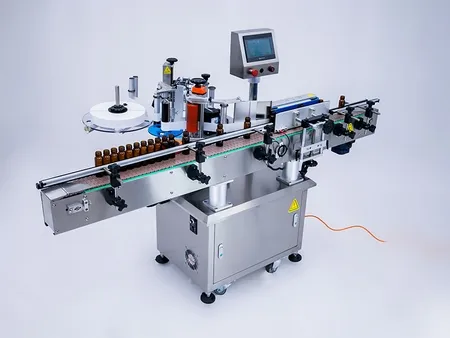

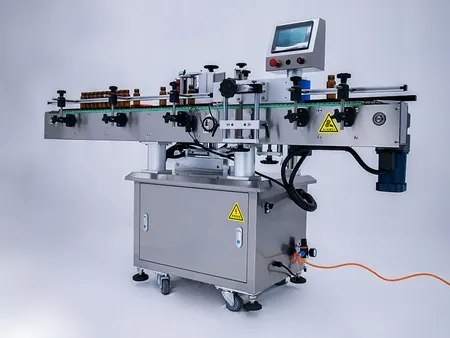

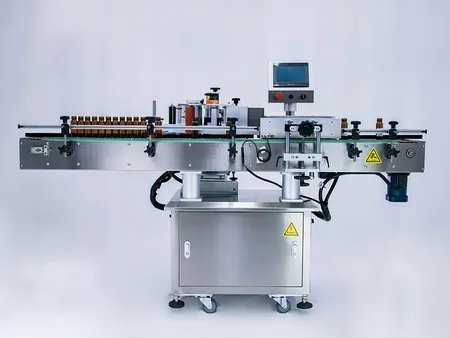

The wrap around labeling machine with wrap belt is perfect for your upright bottle labeling needs! Whether you need it as a standalone unit or part of a production line, it’s built to adapt. With its automatic bottle separation function and 24/7 operation capability, you’ll enjoy uninterrupted performance. The labeling, conveyor, and bottle separation speeds are fully adjustable, giving you complete control to match your production requirements. Plus, it’s built to last with stainless steel and high-grade aluminum alloy, all while meeting GMP standards. Ready to take your production to the next level? Let’s talk about how this machine can help!

  • Labeling Speed

    20 to 200 Products Per Minute

  • Machine Dimensions (L×W×H)

    2000×1200×1300mm

Details
Specifications
  • Machine Dimensions (L×W×H)2000×1200×1300mm
  • Conveyor Belt Height From Ground810mm
  • Conveyor Belt Width101.6mm
  • Labeling Speed20-200pcs/min (depending on bottle diameter and label length)
  • Container Height30-280mm (self-standing container)
  • Container Diameter20-101mm
  • Label Height Range15-135mm
  • Label Length Range20-300mm
  • Labeling Accuracy±1mm (excluding package and label errors)
  • Inner Diameter of Label Roll40mm/76mm
  • Outer Diameter of Label Roll＜ 360mm
  • Power Supply220V 50/60HZ 1.5kW
  • Machine Weight180kg
Applications

Versatile and efficient, our wrap around labeling machine with wrap belt combines two-side labeling and wrap-around labeling capabilities, making it perfect for single or double-sided labeling of flat, square, and irregularly shaped bottles, as well as full or partial wrap-around labeling of cylindrical objects. It’s widely used across industries like cosmetics, pharmaceuticals, hardware, and plastics.

For example:
  • Cosmetics: Side labeling for round packaging like lip balm tubes and various cosmetic bottles.
  • Pharmaceuticals: Labeling for round reagent containers and medicine bottles.
  • Hardware: Structural instruction labeling for various products.
Features

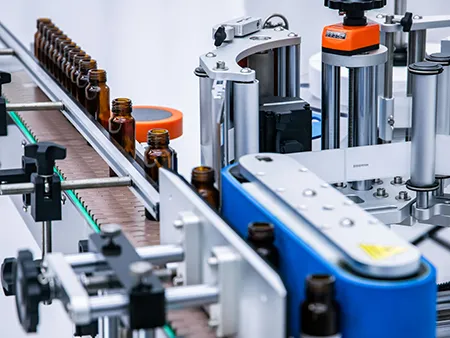

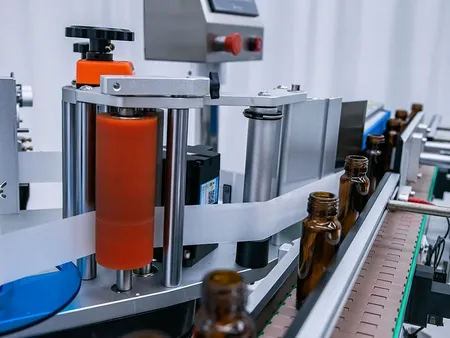

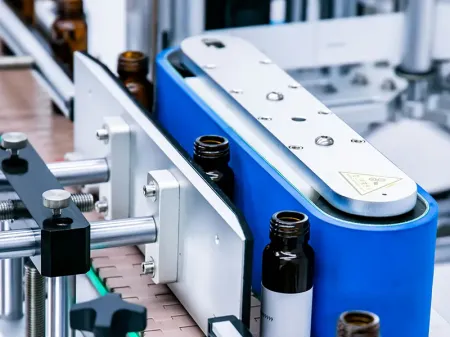

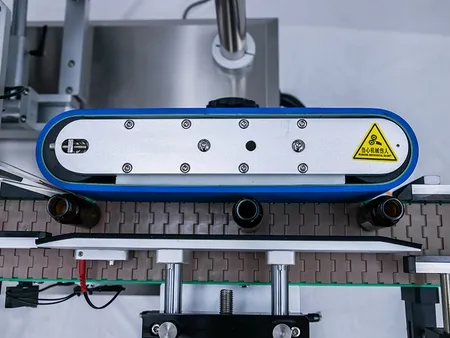

  • Enhanced Labeling Quality: Features a spring-loaded label covering belt for smooth, wrinkle-free labeling, improving packaging quality. The sponge belt rotates bottles effortlessly, making it suitable for labeling various round bottles with labels of different materials. Fast, stable, and highly precise label application.

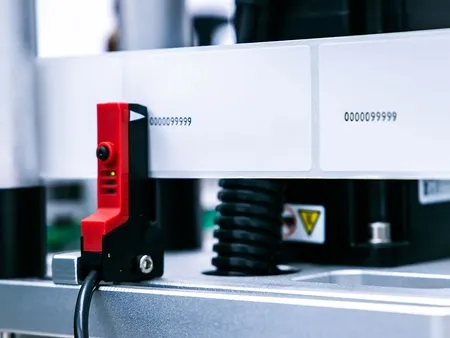

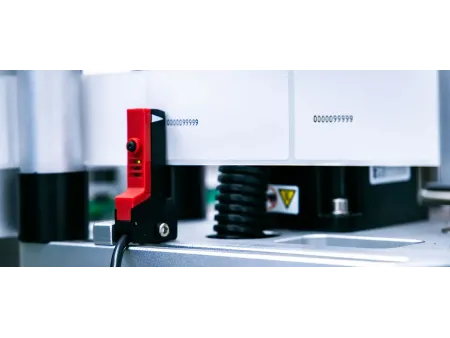

  • Smart Control System: Equipped with automatic photoelectric tracking, ensuring no product, no labeling. It also includes automatic label correction and label detection functions to prevent missed labels and reduce waste.
  • Advanced Electronic Control System: Utilizes an imported Panasonic touch screen and a high-end control system comprising Panasonic's photoelectric sensor and Germany's Leuze photoelectric sensor for superior accuracy and reliability.
  • Durable Construction: Built with stainless steel and high-grade aluminum alloy, this wrap around labeling machine is robust, long-lasting, and fully compliant with GMP standards.
Videos

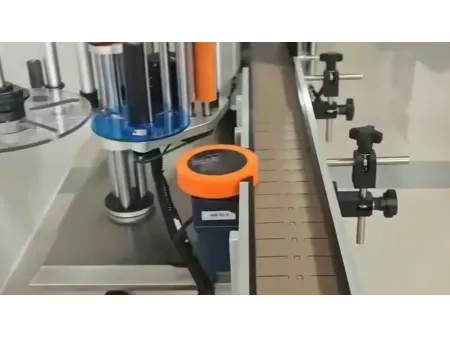

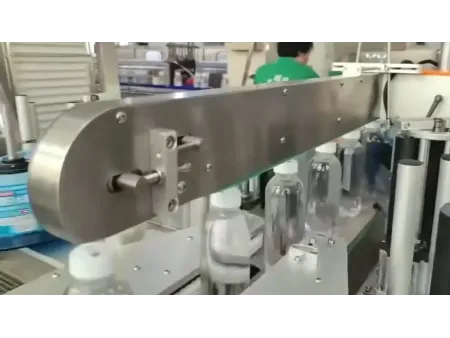

Belt Wrap Around Labeling Machine
Belt Wrap Around Labeling Machine
Belt Wrap Around Labeling Machine

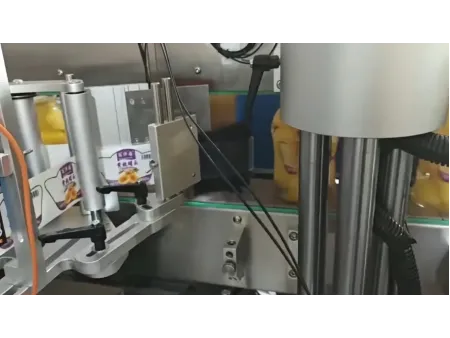

Wrap Around Labeling Machine for Canned Fruit Manufacturer

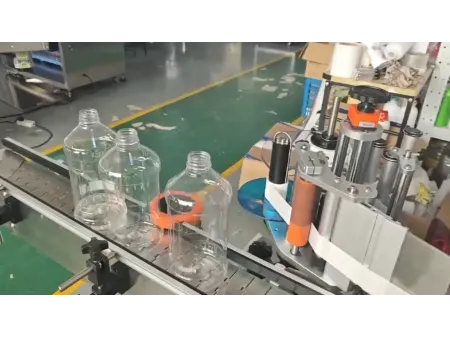

Round Bottle Labeling Machine for Rehydration Solution Company

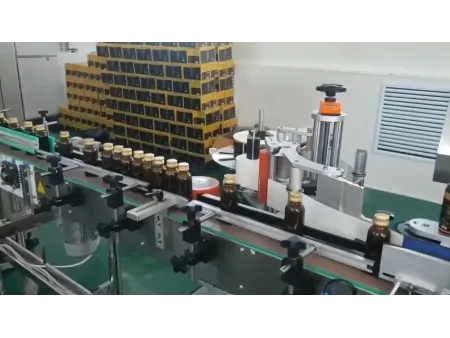

Wrap Around Labeling Machine for Pharmaceutical Bottles
