Personal Care & Cosmetic Filling Line

Personal Care & Cosmetic Filling Line
Personal Care & Cosmetic Filling Line
Personal Care & Cosmetic Filling Line
Request a Quote

Automatic filling, capping and labeling system for essential oil, cream, lotion, and healing jelly

Key Specifications
  • Filling Accuracy: ≤±1% (30ml)
  • Production Capacity: 30-40 BPM (Bottles Per Minute)

This personal care and cosmetic filling production line is specifically engineered for high-viscosity products such as creams and pastes, integrating filling and capping into a seamless, fully automated workflow. Utilizing advanced piston or peristaltic pump filling systems, the filling machine ensures high precision and drip-proof performance while strictly adhering to GMP hygiene standards. Featuring PLC and touch screen (HMI) control, it offers a compact design, flexible operation, and rapid changeover, providing a highly efficient automation solution for the cosmetic and pharmaceutical industries.

Application

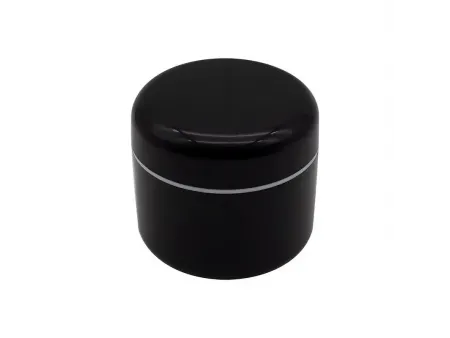

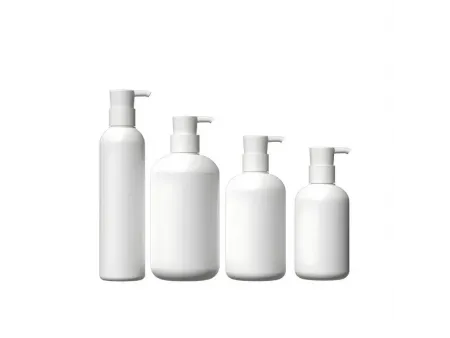

Facial CreamBody LotionSerumVaseline
Parameters
Model NP-MFC Series
Applicable Bottles Customized
Output Capacity 30-40 bpm
Filling Accuracy ≤±1%(30ml)
Filling Range 5ml to 120ml
Filling Nozzles 1 to 4 nozzles
Capping Heads 1 to 2 heads
Voltage 220V/50Hz (Customized Optional)
Auto-Capping Rate ≥99.9%
Auto-Stopper Rate ≤99.9%
Air Consumption 1.3 m3/h 0.4-0.8Mpa
Power 2.5KW
Weight 700KG
Size Refer to layout
Process Flow Chart
Components
  • Automatic Monoblock Filling Machine
