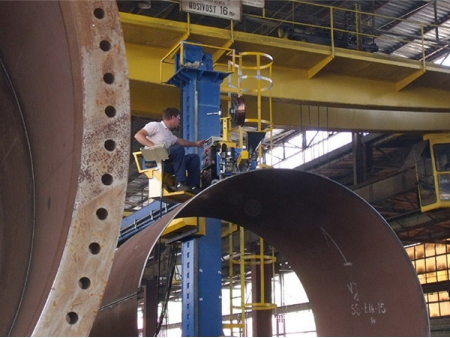

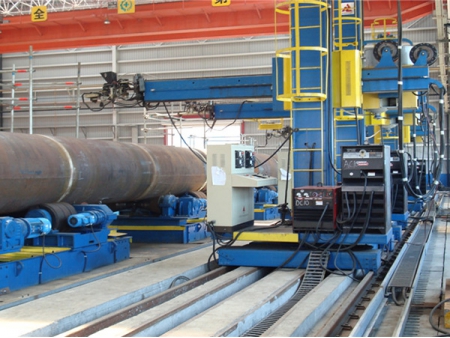

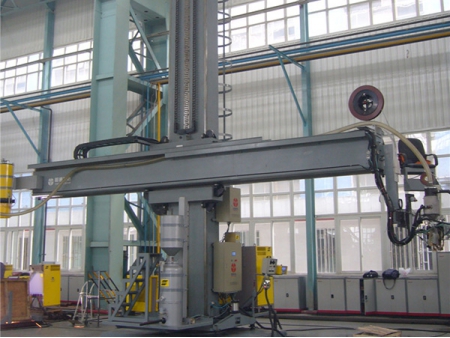

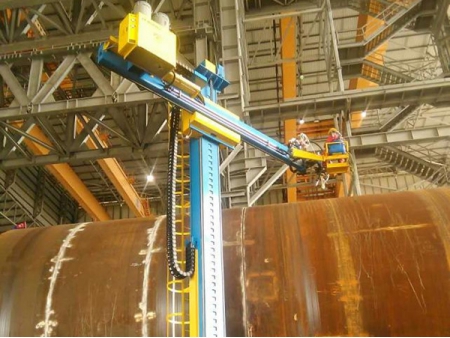

Column and Boom Welding Manipulator
Our automatic welding machines are designed for various welding tasks, perfect for working with metal containers and structures. They are widely used in many important industries, such as wind power, pressure vessel manufacturing, petrochemicals, pipeline construction, steel frameworks, boilers, shipbuilding, and even specialized repair jobs. One key feature of this welding equipment is their ability to precisely weld the tank shell and head cover, making it especially efficient in overlay welding on tank shell with longitudinal seam and circumferential seam for extra strength.
The automatic welding machinery manufactured by Chaoli are used across various sectors, enhancing the production and maintenance processes for wind turbine components, pressure vessels, transportation pipelines, and steel frameworks. Choosing our welding equipment signifies a step forward in achieving operational excellence, structural resilience, and adherence to rigorous safety standards.
Our welding equipment is adaptable to various welding techniques, such as TIG, MIG/MAG, PAW, and SAW methods. This versatility ensures that regardless of the specific requirements of your project, our welding machines can deliver high-quality welds.
- The submerged arc welding (SAW) welding technique is suitable for materials that are 6mm thick or more, commonly used with carbon steel and also capable of welding stainless steel.
- Gas metal arc welding (GMAW), or MIG/MAG welding, are suitable for materials with a thickness of 3mm or more, including carbon steel, stainless steel, and aluminum plates.
| Type | Heavy-duty | Middle-duty | Light-duty | |||
| | | | | | | |
| Effective vertical stroke (mm) | 8000 | 5000 | 4000 | 3500 | 3000 | 2000 |
| Effective horizontal stroke (mm) | 6000 | 6000 | 5000 | 5000 | 4000 | 2000 |
| Suitable diameter of cylinder (mm) | 1000-8000 | 1000-5000 | 1000-4000 | 700-3500 | 700-3000 | 500-2000 |
| Column rotating angle | ±180° | ±180° | ±180° | ±180 | ±180° | ±180°(manual) |
| Boom elevation speed (m/min) | 0.9 | 1 | 1 | 1 | 1 | 0.3 |
| Expansion speed of boom (m/min) | 0.12-1.2 | 0.12-1.2 | 0.12-1.2 | 0.12-1.2 | 0.12-1.2 | 0.12-1.2 |
| Trolley travel speed (m/min) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Center distance of trolley track (mm) | 2308 | 1780 | 1780 | 1780 | 1500 | 900 |
