Fluid Bed Dryer, FL Series Manufacturer

Fluid Bed Dryer, FL Series

Request a Quote

View All: http://pharmacy-machines.com

FL series fluid bed dryer is an ideal for drying water-containing solids, it is widely used in pharmaceutical, chemical, foodstuff and health care industries.

Features

Enclosed design of operating system prevents cross contamination;
Accurate temperature control with low fluctuation;
Two filtering chambers allow the bag shaking to be alternated between these two, thus guaranteeing the continuous fluidization process;
German advanced polishing technique provides better appearance of the machine;
User interface is designed with animations for visualization, easy to operate;
Key connection parts are imported from Germany, ensuring high safety and durability;
Simple structure, fast disassembly for easy cleaning without dead corner, meeting the requirements of cGMP production standards;
Specially designed air distribution structure provides even distribution of airflow and better production efficiency, resulting a stable and reproducible quality of the final products;

Technical Specifications

Model			FL-15	FL-30	FL-60	FL-120	FL-200	FL-300	FL-500
Material container	Capacity	L	45	100	220	420	670	1000	1500
Material container	Diameter	mm	550	700	1000	1200	1400	1600	1800
Output		Kg/time	10-15	15-30	30-60	60-120	100-200	150-300	250-500
Steam	Pressure	MPa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Steam	Consumption	Kg/hour	42	70	141	211	282	366	451
Compressed air	Pressure	MPa	0.4	0.4	0.4	0.4	0.4	0.4	0.4
Compressed air	Consumption	m3/min	0.6	0.6	0.9	0.9	0.9	1.1	1.1
Fan power		Kw	7.5	11	15	18.5	30	45	55
Electric heating power		Kw	30	36	45	54	63	120	180
Dimension	(L×W×H)	m	1.25X0.75X2.1	1.6X0.9X2.5	1.85X1.25X3	2.2X1.65X3.5	2.34X1.7X3.8	2.8X1.9X4.2	3X2.25X4.6

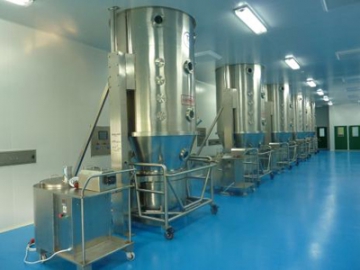

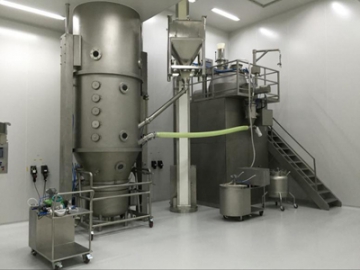

User workshop
