ASA-UPVC Roofing Sheet (BR-1120)
Request a Quote
Special Features
1. High Strength and 100% Waterproof
2. Supporting up to 1200mm purlin spacing
3. Excellent Anti-Corrosion & Anti-UV Performances
Specifications of ASA-PVC Roof Sheet
| Model | HB-APRT | ||

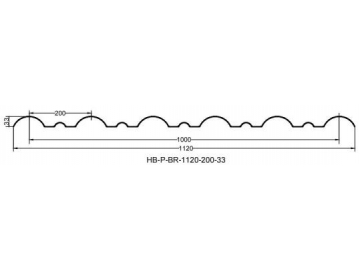

| Profile | | ||
| Thickness | 2.0mm | 2.5mm | 3.0mm |
| Purlin Span | 800mm | 900mm | 1000mm |
| Length | 5800mm, 11800mm or Customizable | ||
| Overall Width | 1120mm | ||
| Effective Width | 1000mm | ||
| Slope | > 20° | ||
| Weight | 2.0mm: 3.70 kg/m2 | 2.5mm: 4.70 kg/m2 | 3.0mm: 5.70 kg/m2 |
| Container Load Capacity | Thickness | SQ.M./20 FCL (21 Tons) | SQ.M./20 FCL (26 Tons) |
| 2.0mm | 5700 m2 | 7200 m2 | |
| 2.5mm | 4500 m2 | 5600 m2 | |
| 3.0mm | 3700 m2 | 4600 m2 | |
Note: The above testing results are achieved based on 3mm thick and tests conducted by SGS and are provided for reference only
