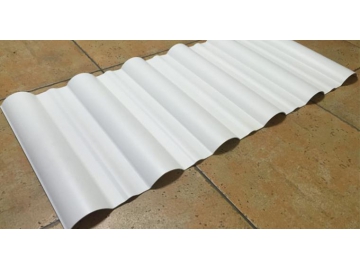

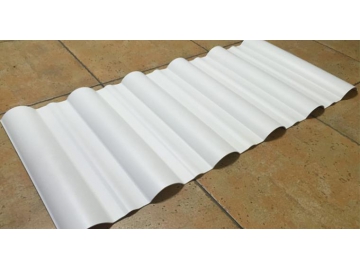

UPVC Roofing Sheet (T-1120)
Request a Quote
View All: http://roll-formingmachines.com/3-13-kls25-220-530-portable-standing-seam-curving-machine.html
Special Features
1. Exceptional Heat and Sound Insulation Performance
2. Supporting up to 1200mm purlin spacing
3. High Strength and 100% Waterproof
Specifications of UPVC Roof Sheet
| Model | HB-URT | ||||||

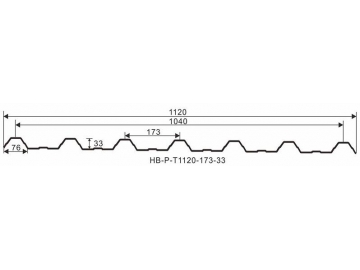

| Profile | | ||||||
| Thickness | 2.0mm | 2.5mm | 3.0mm | ||||
| Purlin Span | 1000mm | 1100mm | 1200mm | ||||
| Length | 5800mm, 11800mm or Customizable | ||||||
| Overall Width | 1120mm | ||||||
| Effective Width | 1040mm | ||||||
| Slope | > 20° | ||||||
| Weight | 2.0mm: 3.90 kg/m2 | 2.5mm: 4.90 kg/m2 | 3.0mm: 5.90 kg/m2 | ||||
| Container Load Capacity | Thickness | SQ.M./20 FCL (21 Tons) | SQ.M./20 FCL (26 Tons) | ||||
| 2.0mm | 5100 m2 | 6600 m2 | |||||
| 2.5mm | 4100 m2 | 5300 m2 | |||||
| 3.0mm | 3400 m2 | 4400 m2 | |||||
