Double Wound Step Up Transformer for Solar Power Station Manufacturer

Double Wound Step Up Transformer for Solar Power Station

Request a Quote

View All: http://eaglerise-electric.com

The double wound step up transformer for solar power station is a European style product, and it is very necessary to convert solar energy into electric energy. The double wound design has been proven to be the most reliable and economical one so far, and our product could be classified into two categories which are oil immersed type with amorphous metal core and dry type with CRGO core.

Technical Parameters

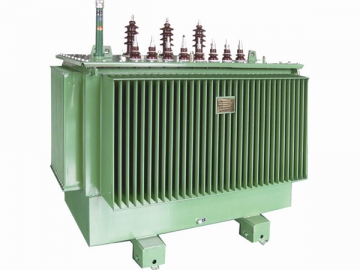

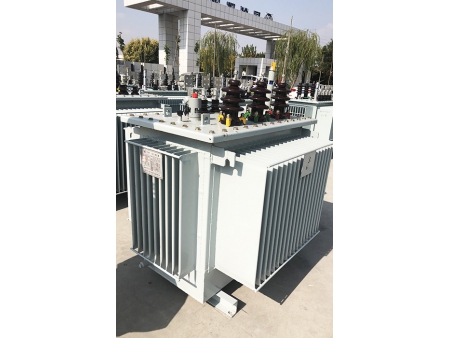

Table 1: Oil Immersed Type with Amorphous Core (10KV/20KV/35KV)

Rated power (kVA)	Input/output voltage(V)	Frequency (Hz)	Insulation class	Efficiency (%)	Size (mm)	Weight (kg)
500		50/60	A	98.8	1780×1240×1600	2950
630	2×270/10000	50/60	A	98.9	1820×1240×1600	3060
1000	2×270/10000	50/60	A	99.1	2010×1100×1720	4400
1260		50/60	A	99.2	2030×1130×1800	5200

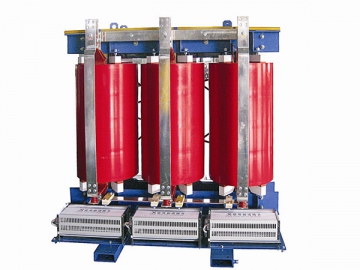

Table 2: Dry Type with CRGO Core (10KV/20KV/35KV)

Rated power (kVA)	Input/output voltage(V)	Frequency (Hz)	Insulation class	Efficiency (%)	Size (mm)	Weight (kg)
500	2×270/10000	50/60	F/H	98.7	1500×920×1600	2100
500	2×270/20000	50/60	F/H	98.4s	1650×920×1660	2300
630	2×270/10000	50/60	F/H	98.7	1540×920×1640	2260
630	2×270/20000	50/60	F/H	98.4	1700×920×1800	2400
1000	2×270/10000	50/60	F/H	99	1710×1170×1670	3170
1000	2×270/20000	50/60	F/H	98.7	1880×1170×1670	3300
1260	2×270/10000	50/60	F/H	99	1770×1170×1800	3650
1260	2×270/20000	50/60	F/H	98.8	1950×1170×1960	3850

Related Names
Boost Transformer | Step Up Voltage Converter | Grid Tie Inverter Transformer
