YIHUA-1501S /1501S USB DC Power Supply Manufacturer

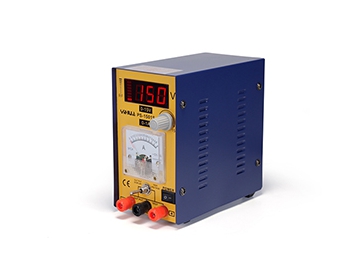

YIHUA-1501S /1501S USB DC Power Supply

Request a Quote

View All: http://yihua-soldering.com/product-4-5-dc-power-supply-en/147689/index.html

Features

YIHUA-1501S DC power supply is convenient to take, for being small in size and light in weight.
It is characterized by high precision and strong reliability.
Such two functions as short circuit protection function and automatic recovery function are available.
The adjustable voltage is 0~15V, and the output current is 0~1A.
The equipment can be used to test the voltage ranging from 0-49.9V.
YIHUA-1501S USB, with USB interface.

Parameters

General Information
Rated Voltage	AC110V/ 220V/230V/240V ±10% 50Hz
Whole Machine Power	20W
Working Environment	0 ~ 40 ℃ relative humidity < 80%
Storage Environment	-20 ~ 80 ℃ relative humidity < 80%
Dimensions	13575130cm
Weight	1.05KG
Performance
Output Voltage	0 ~ 15V
Output Current	0 - 1A
Source Effect	1.5mV
Loading Effect	≤ 0.13%
Ripple and Noise	≤ 4mV
Power Stability	≤ 0.5%
Measurement Accuracy	0.1V
Protected Mode	Short circuit protection, automatic recovery function

Application
YIHUA-1501S DC power supply is extensively used in mobile phone repairs and other related industries.
