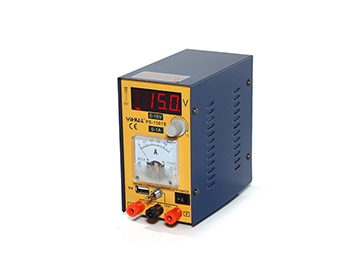

YIHUA-1501S /1501S USB DC Power Supply
Request a Quote
Features
1. YIHUA-1501S DC power supply is convenient to take, for being small in size and light in weight.
2. It is characterized by high precision and strong reliability.
3. Such two functions as short circuit protection function and automatic recovery function are available.
4. The adjustable voltage is 0~15V, and the output current is 0~1A.
5. The equipment can be used to test the voltage ranging from 0-49.9V.
6.YIHUA-1501S USB, with USB interface.
Parameters
| General Information | |
| Rated Voltage | AC110V/ 220V/230V/240V ±10% 50Hz |
| Whole Machine Power | 20W |
| Working Environment | 0 ~ 40 ℃ relative humidity < 80% |
| Storage Environment | -20 ~ 80 ℃ relative humidity < 80% |
| Dimensions | 135*75*130cm |
| Weight | 1.05KG |
| Performance | |
| Output Voltage | 0 ~ 15V |
| Output Current | 0 - 1A |
| Source Effect | 1.5mV |
| Loading Effect | ≤ 0.13% |
| Ripple and Noise | ≤ 4mV |
| Power Stability | ≤ 0.5% |
| Measurement Accuracy | 0.1V |
| Protected Mode | Short circuit protection, automatic recovery function |
Application
YIHUA-1501S DC power supply is extensively used in mobile phone repairs and other related industries.
Related Names
Variable Regulated DC Power Supply | Communication Electrician Power Device | Electronics Repair Power Supply
