Industrial robot welding solution

Robotic welding cells can be specifically configured based on the welding specifications and production capacity. Our six-axis welding robots are compatible with TIG welders, MIG welders, laser welders, etc. The comprehensive robotic welding cell is comprised of six-axis industrial robot, controller, welder, positioner, tooling fixture, welding torch cleaning station, safety device, and more. This integrated welding solution aims to enhance automation, effectively reducing labor costs for our customers.

Welding Samples

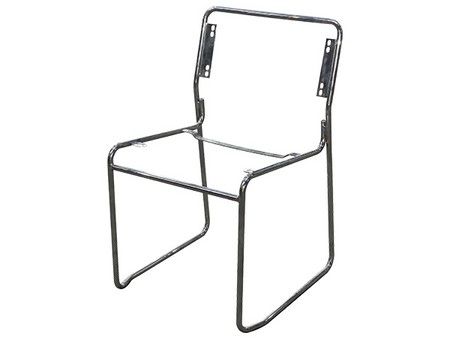

Chair frame welding

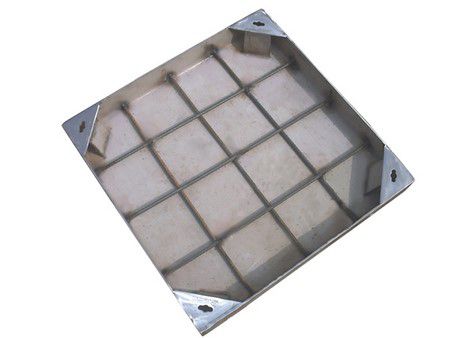

Stainless steel manhole cover welding

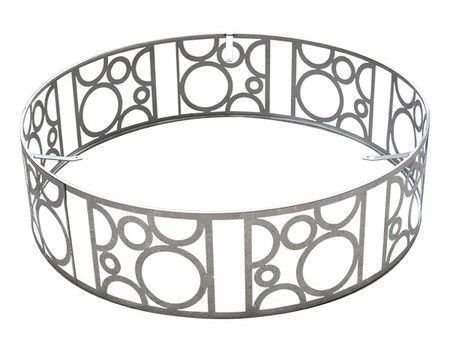

Coffee table welding

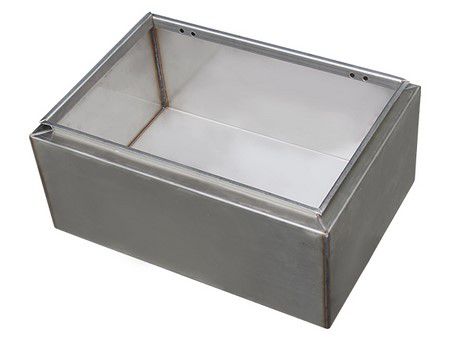

Sheet metal cabinet welding

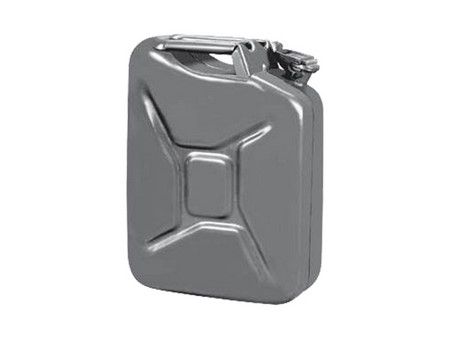

Automobile fuel tank welding
Storage rack welding

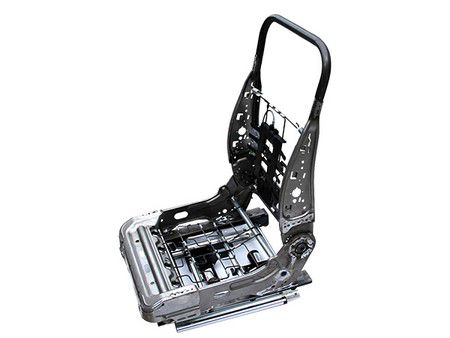

Automobile angle adjuster welding

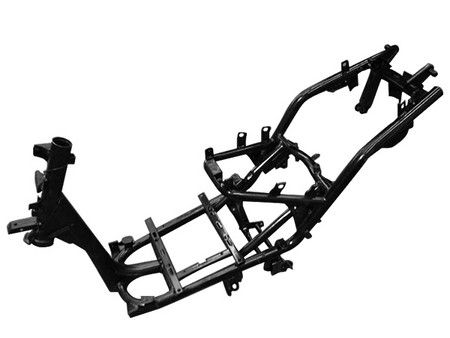

Motorcycle frame welding

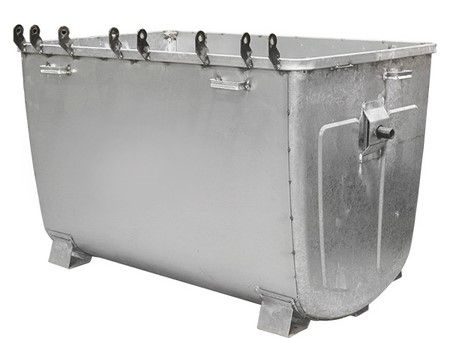

Metal trash can welding
Gas tank cabinet welding

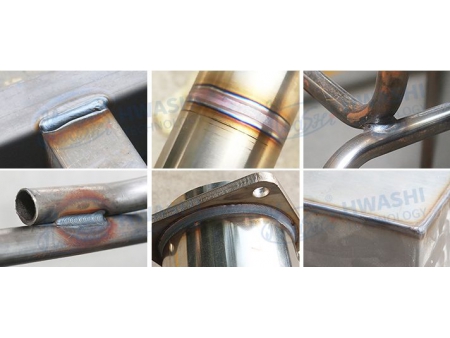

Appearance of Welds

Process

Manually load the workpiece onto the fixture of welding station 1
Start welding
Robot and positioner will do the welding as per the presetting program
Welding completed
Load the workpiece onto the fixture of welding station 2 when station 1 is under welding process
Two welding stations will work in cycle.

Types of robotic welding cells we provide

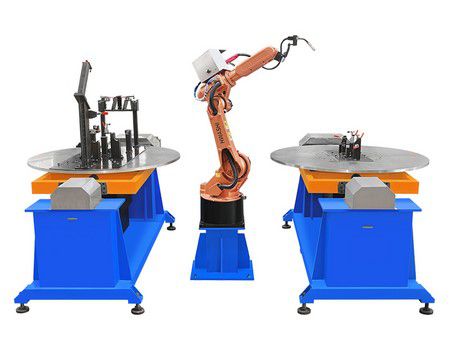

Robotic MIG welding cell for chair frames
The welding automation equipment is designed with a single axis robotic rotary positioner, which realizes welding tubular chair frame from different angles.
Robotic MIG welding cell for motorcycle frame
Suitable for automatic welding of tubular motorcycle frame; need to be equipped with multiple sets of robots and fixtures to complete the entire product welding

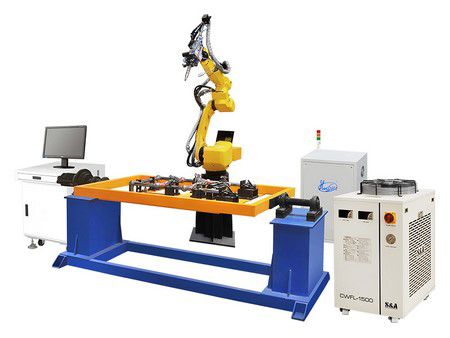

Robotic laser welding cell for stainless steel heated towel rail radiator
Suitable for automatic welding of stainless steel towel radiators. Laser welding is used to ensure there are no leaks.
Robotic MIG welding cell for motorcycle fuel tank
Suitable for automatic welding of motorcycle fuel tanks. Dual-axis welding positioner allows for vertical and horizontal rotation, making it suitable for multi-position welding.

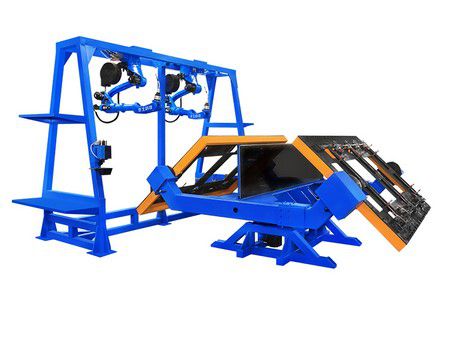

Robotic MIG welding cell for scaffolding
Suitable for automatic welding of scaffolding; 3-axis welding positioner saves labor and improves efficiency

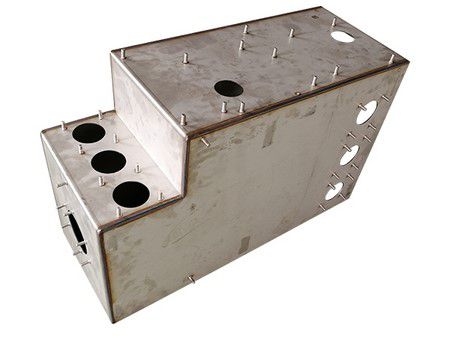

Robotic TIG welding station for air-insulated RMU
Suitable for automatic welding of stainless steel enclosures.

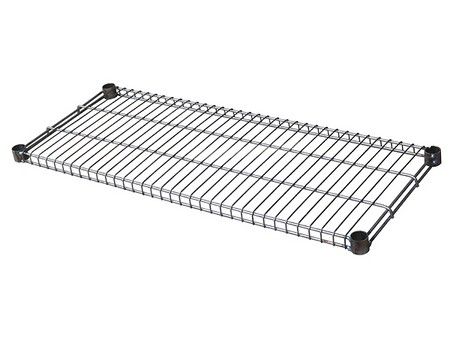

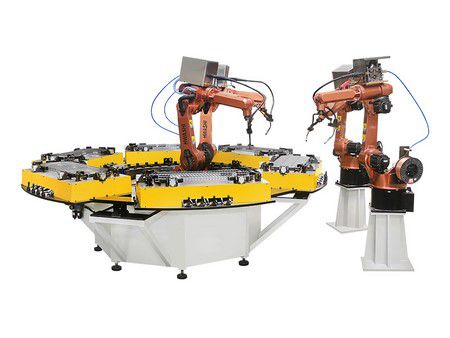

Multi-station robotic MIG welding cell for stainless steel wire shelf
Suitable for simultaneous welding stainless steel wire shelving by multiple robots

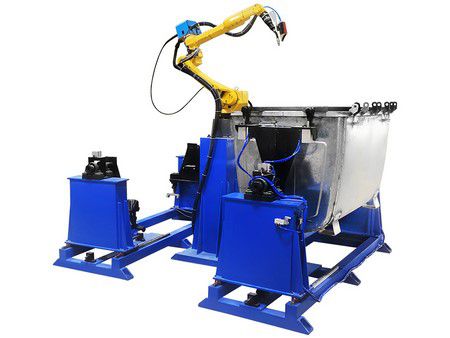

Robotic MIG welding station for GI trash bin
Suitable for automatic welding of GI trash bins. MIG welding paired with laser seam tracking device is adopted, ensuring precise welding position.
Robotic TIG welding station for electric cabinet
Suitable for automatic welding of enclosures for electrical cabinets, using Panasonic TIG welding machine
Robotic spot welding cell for metal drawer box
Suitable for welding of metal enclosures with overlapping joints by means of resistance spot welding.

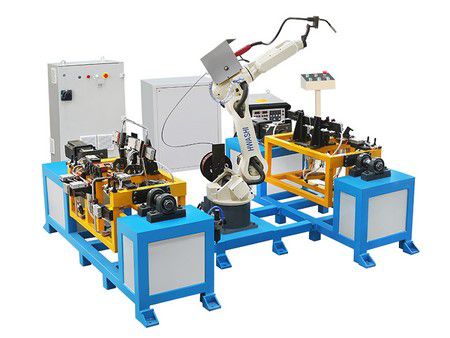

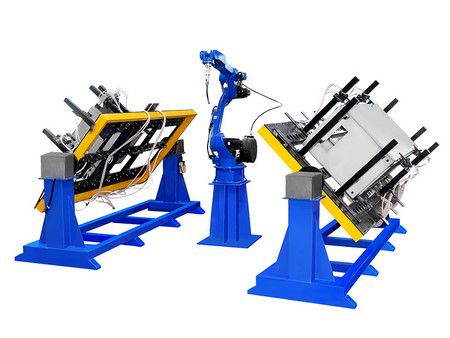

Dual-station welding robot workstation
Suitable for automatic welding of pallet rack beams with two welding robots working simultaneously.
Robotic welding cell for exhaust muffler
Equipped with a welding booth and perimeter guards for higher safety; suitable for welding of stainless steel pipes.

Welding samples made by different welding robots
