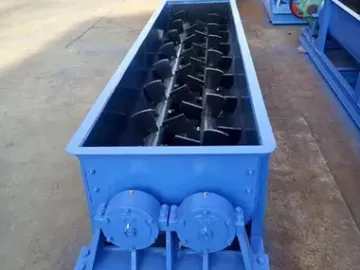

Double Shaft Mixer

Request a Quote

Website: http://fertilizermachine-en.com/2-2-double-shaft-mixer.html

Fertilizer Mixing & Granulation Equipment

Double shaft mixer delivers exceptionally high mixing efficiency. With two mixing shafts working simultaneously, it can process a large volume of material in a short period, meeting the demands of large-scale production. Often used in the batching stage, it also provides some crushing functionality.

Superior mixing performance
The adjustable blade angles and cutting gaps allow for excellent mixing of materials with varying particle sizes, densities, and flow characteristics.
Extended lifespan

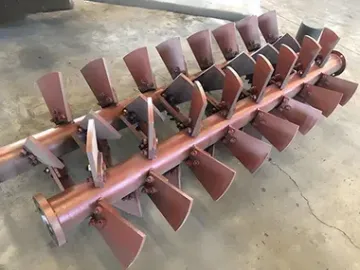

Both the shafts and blades are made from alloy steel that has been vacuum carburized and tempered. This process gives the surface a hardness of over HRC60, significantly extending maintenance cycles and reducing replacement part costs.
Applications
In compound fertilizer manufacturing, the double shaft mixer ensures that various raw materials are uniformly blended.

Specifications

Model	SZJ200	SZJ250	SZJ300	SZJ350	SZJ400
Rotor Diameter (mm)	Ø320	Ø400	Ø480	Ø560	Ø640
Production Capacity (t/h)	6-10	8-22	10-28	12-32	15-45
Motor Power (kW)	15	18.5	22	22	30

The shell is made of Q235 steel or stainless steel. The shafts can also be made from stainless steel.

On-Site Cases

Shenzhen Batian Ecotypic Engineering Co., Ltd. purchased SZJ250 double shaft mixer.

Shandong Hongri Group Co., Ltd. purchased SZJ350 double shaft mixer.
