Big Bag Discharging Station (with Pneumatic Massage Units)

Request a Quote

Website: http://powerhandling-en.com/1-1-1-2-big-bag-discharging-station.html

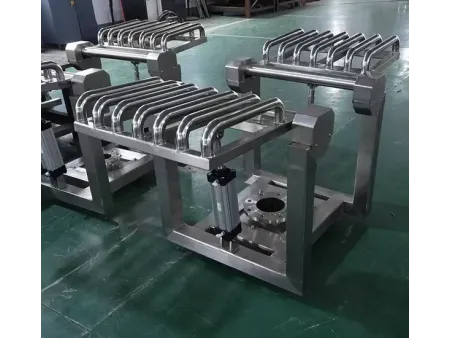

Bulk bag unloading system with pneumatic massage paddles to loosen compacted powders for clog-free discharge

Applicable bag: FIBC bulk bags (tonne bags)
Hoist lifting capacity: 0.2-1.5T
Working pressure: 0.5-0.6MPa
Operating temperature: -20℃ to 45℃

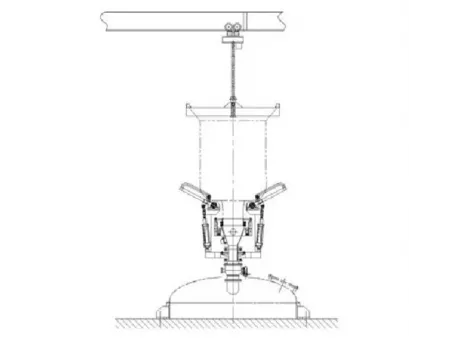

The discharging system lifts the FIBC bag to the feed inlet, where the operator unties the outlet rope to begin unloading. The built-in pneumatic massage units assist material flow by gently agitating the bag, allowing powder or granular materials to fall by gravity into the buffer hopper. Material is then transferred via a screw conveyor to the next processing step. The fully enclosed structure maintains a clean, dust-free working environment, ideal for pharmaceutical, chemical, and food industries.

Features

Dust-free operation
Pneumatic massage units effectively loosen compacted materials, ensuring smooth discharge into the hopper. The sealing ring and bag clamping system prevent dust leakage during unloading.
Safe and reliable structure
All contact parts are available in SS304 (food grade) or SS316L stainless steel, providing corrosion resistance and hygiene compliance for pharmaceutical and chemical applications.
Reduced manual handling
The system is equipped with an electric hoist for easy lifting of FIBCs. Bags are secured to a rigid frame, and the hoist travels along a rail to position the bag accurately above the discharge station. After emptying, the clamping device releases the bag, allowing the operator to remove it safely and efficiently.

Typical Applications

Fertilizer
Lactose
Milk powder

For powder processing, we also provide a .
