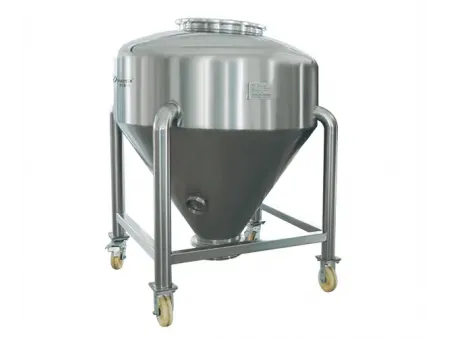

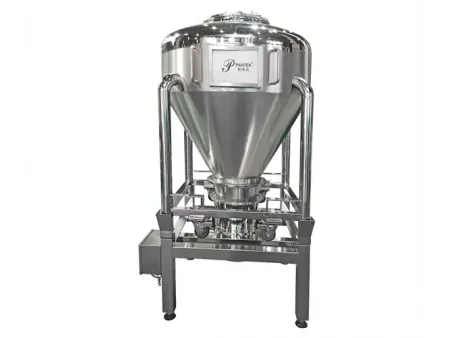

IBC Bin (Hopper Storage Bin)

Request a Quote

Website: http://powerhandling-en.com/1-6-ibc-hopper-storage-bin.html

Mobile storage hopper for handling, storing, and transferring powder materials in a closed manner

The IBC bin (intermediate bulk container) is developed based on advanced European pharmaceutical handling technologies, designed for the enclosed transfer of powder materials in pharmaceutical production. Equipped with silicone sealing rings on both the top cover and discharge valve, the hopper storage bin ensures airtight, moisture-proof, and contamination-free material storage.

Materials can be blended, stored, and transferred within the same container, minimizing manual handling steps such as refilling or transferring and effectively preventing cross-contamination. The system fully complies with GMP requirements for pharmaceutical manufacturing.

Specifications

Model	Capacity	A	B	C	D	H	H1	H2	H3	H4	Weight
IBC200	200L	800	430	250	60°	970	54	100	740	160	120kg
IBC300	300 L	800	430	250	60°	1120	54	250	740	160	140kg
IBC400	400 L	800	430	250	60°	1270	54	400	740	160	160kg
IBC500	500 L	1000	430	250	60°	1270	52	200	644	158	190kg
IBC600	600 L	1000	430	250	60°	1370	52	300	644	158	220kg
IBC800	800 L	1000	430	250	60°	1570	52	500	644	158	260kg
IBC1000	1000 L	1200	560	300	70°	1540	78	420	643	203	300kg
IBC1200	1200 L	1200	560	300	70°	1680	78	560	643	203	330kg
IBC1500	1500 L	1200	560	300	70°	1890	78	770	643	203	390kg
IBC1800	1800 L	1200	560	300	70°	2100	78	980	643	203	450kg
IBC2000	2000 L	1200	560	300	70°	2240	78	1120	643	203	520kg

Features

Constructed from high-quality austenitic stainless steel (304 or 316L).
The square-rounded conical hopper design ensures smooth transitions with no dead corners or residue, providing a clean and elegant appearance.
Both internal and external surfaces are highly polished, achieving internal surface roughness of Ra≤0.2 μm and external surface roughness of Ra≤0.4 μm.
Custom-designed top cover and butterfly valve with silicone seals ensure airtight closure.
All welded joints are beveled and welded on both sides using argon arc welding, then ground and polished; welding quality conforms to JB4708 and JB4709 standards.
Equipped with specially designed casters that protect cleanroom floors without leaving marks.
The hopper bin offers excellent structural strength and deformation resistance.

Typical Applications

Microcrystalline cellulose
Lithium cobalt oxide
Probiotic powder

Project Implementation Showcase

Used for temporary pharmaceutical storage at a pharmaceutical company
Used for material transfer at a pharmaceutical company
Used for intermediate pharmaceutical storage at a pharmaceutical company

For powder processing, we also provide a .
