Automatic Static Retort

Request a Quote

View All: http://cnfoodmachines.com/1-1-1-automatic-static-retort.html

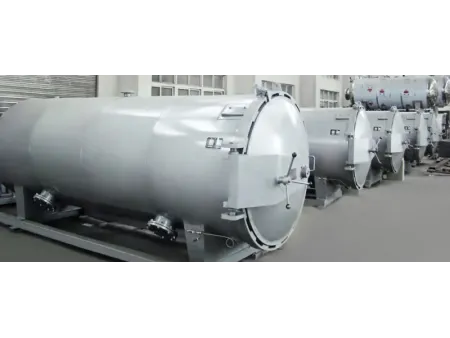

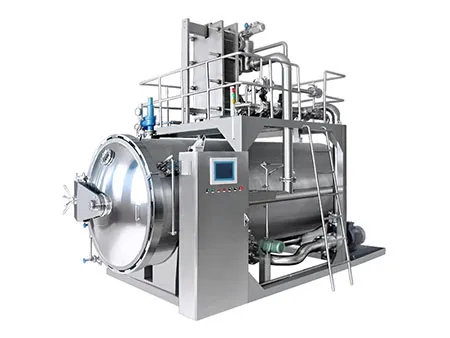

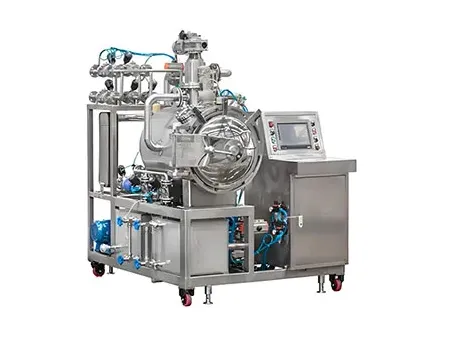

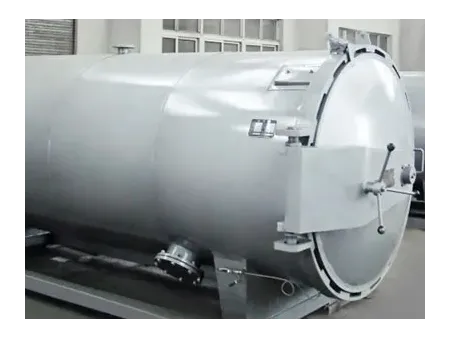

Automatic static retort is designed for sterilizing food products packaged in plastic containers (PP bottles, HDPE bottles), flexible pouches (aluminum foil bags, vacuum bags, oven bags), and rigid containers (tinplate cans, aluminum cans, glass bottles).

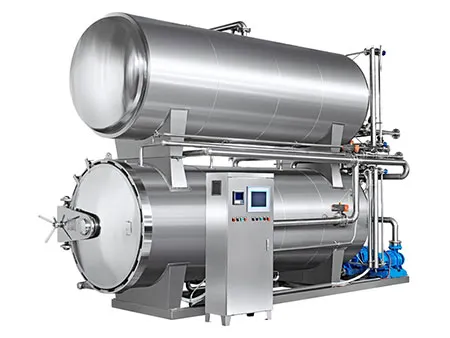

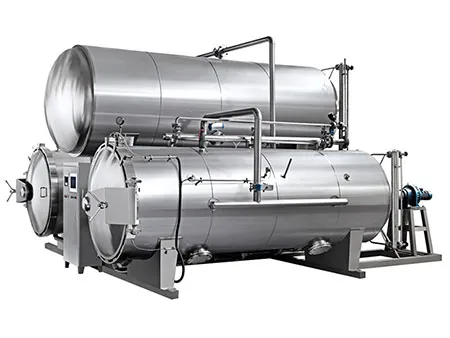

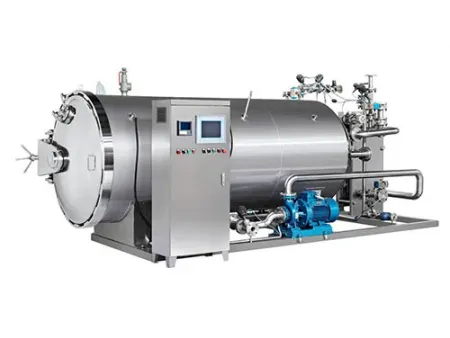

Automatic Static Retort (Water Spray)

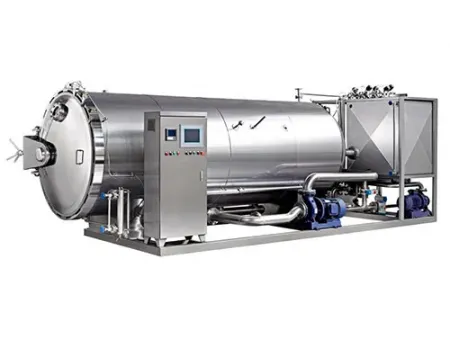

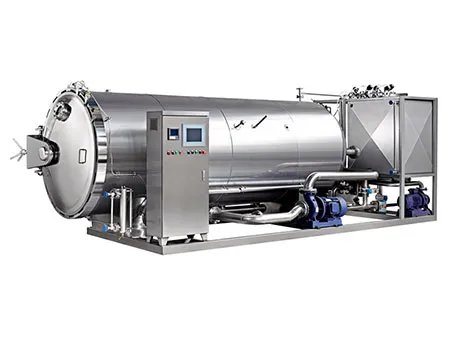

Automatic spray retort (side spray top spray)

Features

Automatic loading and unloading system
Cooling water doesn't contact with process water, which avoids secondary food contamination
Predetermined sterilization temperature can be quickly achieved to perform high temperature sterilization in a short time.
Due to precise pressure control, the pressure can be adjusted in the entire sterilization process to adapt to the change of internal pressure of product packaging, ensuring minimal deformation.
Head (end cap) processed with cold forming undergoes vibration aging, avoiding deformation caused by stress during operation.
The surface of stainless steel retort body is processed by sand grinding, enabling it to have high hardness and good corrosion resistance to chlorine added in the cooling water.
The advanced and reliable control system by SIEMENS ensures that customers can promptly access supply chains worldwide, minimizing downtime caused by malfunctions.
The entire sterilization process is controlled by the PLC control system; even thermal distribution is ensured throughout the retort, with a tolerance of ±0.5℃; multi-stage heating available; optionally equipped with F value measurement function; 250 sterilization formulas can be stored.
Top or side door available

Technical parameters

Items	Units	Ф700#	Ф1200#			Ф1300#		Ф1500#			Ф1600#
Length	mm	800	3000	3750	4000	3750	4000	4000	5000	6000	6000
Overall length	mm	1300	5500	6250	6500	6250	6500	6500	7500	8500	8500
Total width	mm	900	1600	1600	1600	1800	1800	2000	2000	2000	2200
Total height	mm	1000	1700	1700	1700	1800	1800	2000	2000	2000	2100
Effective volume	m3	0.1	2	2.52	2.69	3.03	3.24	4.16	5.2	6.2	7.26
Food basket		2	3	4	4	4	4	4	5	6	6
Steam consumption	Kg/batch	80	200	250	270	270	300	360	430	530	630
Equipment power	Kw	3.7	15	16.5	16.5	18.5	18.5	24	26	27.5	27.5
Design temperature	145℃
Test pressure	0.44MPa
Design pressure	0.35MPa
