Vertical Balancing Machine
Request a Quote
YLD-200

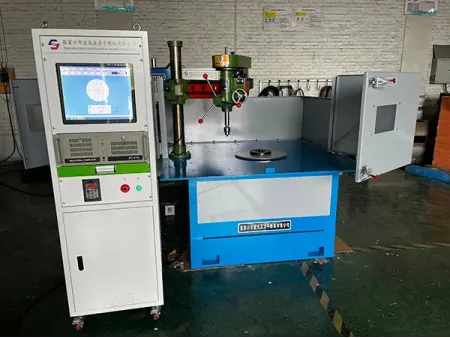

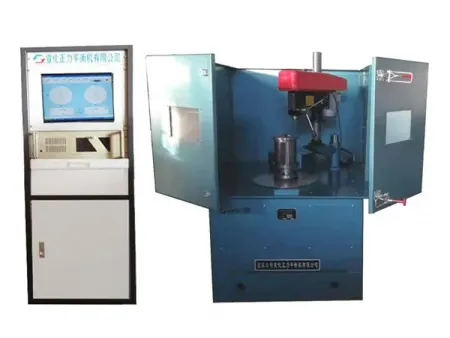

Hard-bearing balancing machine for workpiece with diameter of up to 700mm and weight of 10-200kg
Capable of processing workpieces of up to 200 kg, these hard-bearing balancing machines use a variable-frequency drive that allows smooth speed adjustment. During operation, the workpiece is mounted on a mandrel or fixture, the balancing system measures unbalance while rotating, and results are shown directly on the display. Weight can then be added or removed, with retesting carried out until the balance meets the required standard.
Applications
Suitable for dynamic balancing of medium to large disc-shaped and fan components. Typical applications include:
- Clutches balancing
- Flywheels balancing
- Pulley balancing
- Axial and centrifugal fan impellers balancing
Specifications
| Workpiece weight | 10-200kg |
| Max. workpiece diameter | Ø700mm |
| Max. workpiece height | 300mm |
| Balancing speed | 180-1000rpm |
| Motor power | 3.0kW |
| Time per balancing run | ≤30s |
| Min. achievable residual unbalance (eMar) | ≤2g.mm/kg |
| Unbalance reduction ratio (URR) | ≥90% |
| Machine dimensions (L×W×H) | 1200×1200×1600mm |
| Machine weight | 1500kg |
Features
- Uses a computer display system for measurement and control, showing results clearly through coordinate graphs and waveforms
- It provides functions such as displaying unbalance values and angles, tolerance judgment, balancing speed indication, and supports automatic data storage and printing
- Reference signals are detected with proximity sensors, while vibration signals are measured with advanced piezoelectric sensors
- Equipped with efficient sensors to improve reliability by avoiding common problems of older electromagnetic sensors, including weak signals, interference, high failure rates, and easy damage
