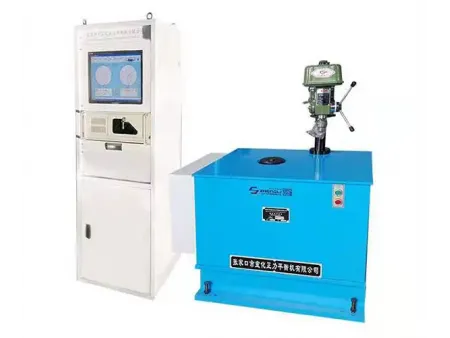

Vertical Balancing Machine
Request a Quote
YLD-11
Hard-bearing balancing machine for workpiece with diameter of up to 400mm and weight of 1-11kg
Designed to calibrate the unbalance disc-type components in the machinery industry. Depending on production needs, these balancing machines can be fitted with a drilling unit for material removal and a protective cover. The measuring options include digital display, touchscreen systems, or industrial PC control, giving users flexibility to match different levels of operation.
Applications
Used for dynamic balancing of high-speed disc-shaped components. Typical applications include:
- Clutch plates and assemblies balancing
- Flywheels balancing
- Gears balancing
- Brake disc balancing
- Pulley balancing
Specifications
| Workpiece weight | 1-11kg |
| Max. workpiece diameter (with safety guard) | Ø400mm |
| Max. workpiece thickness (with safety guard) | 80mm |
| Max. initial unbalance of workpiece | < 500g.cm |
| Couple unbalance interference ratio | ≤1/2000 |
| Balancing speed | 800r/min |
| Min. achievable residual unbalance (eMar) | ≤1g.mm/kg |
| Unbalance reduction ratio (URR) | ≥90% |
Features
- Available with either an embedded measuring system or an industrial PC system
- Operators only need to input basic parameters such as size and radius of the correction planes

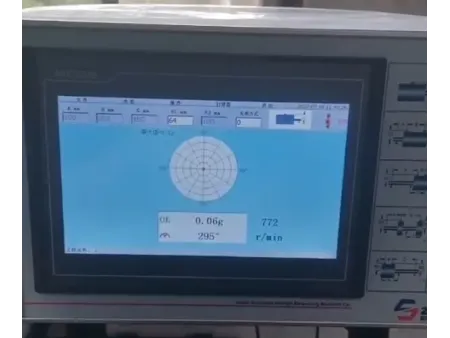

- Once the rotor begins spinning, the system quickly shows the unbalance value and its exact position
- Easy setup and real-time results make the balancing process more intuitive and efficient
