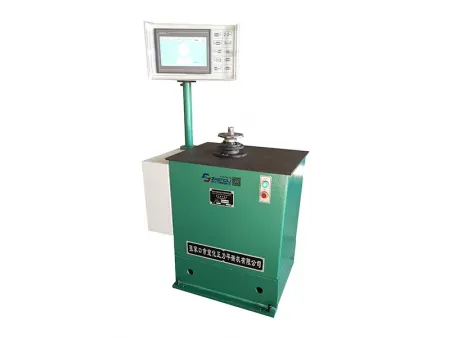

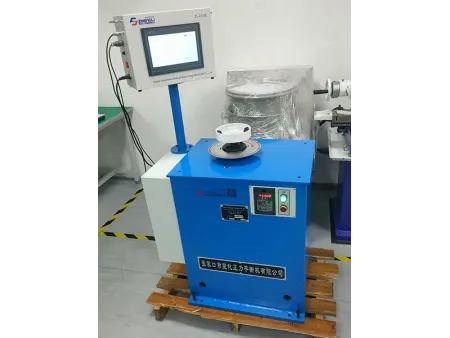

Vertical Balancing Machine
Request a Quote
YLD-3/YLD-5
Hard-bearing balancing machine for workpiece with diameter of up to 200mm and weight of 0.2-3kg
These hard-bearing vertical machines are widely used for disc-shaped parts in the automotive and motorcycle industries. These balancing systems are available in different configurations: the standard version covers basic balancing tasks, while Type A includes a bench drill for material removal. Type B balancing machines add both a bench drill and a dust collection system, which is useful for high-volume production lines that require efficiency and cleanliness.
Applications
Vertical balancing machines are suitable for disc-shaped components used in different industries. They are commonly used for measuring and correcting unbalance in:
- Clutch balancing
- Flywheel balancing
- Gears balancing
- Brake disc balancing
- Pulley balancing
Specifications
| Workpiece weight (with clamping tools) | 0.2-3kg |
| Max. workpiece diameter (with safety guard) | Ø200mm |
| Max. workpiece diameter (without safety guard) | Ø300mm |
| Max. workpiece thickness | 70mm |
| Max. initial unbalance of workpiece | < 200g.cm |
| Couple unbalance interference ratio | ≤1/2000 |
| Balancing speed | 1000r/min |
| Min. achievable residual unbalance (eMar) | 1g.mm/kg |
| Unbalance reduction ratio (URR) | ≥90% |
Features
- Available with either an embedded measuring system or an industrial PC system
- Operators only need to input basic parameters such as size and radius of the correction planes
- Once the rotor begins spinning, the system quickly shows the unbalance value and its exact position
- Easy setup and real-time results make the balancing process more intuitive and efficient
