Request a Quote
Stainless Steel Doctor Blades
Blade Edge Shapes
  • Lamella Blade Edge
  • Bevel Blade Edge
Specifications
Width Range: 10mm-60mm
Width Tolerance: ±0.1mm
Thickness Range: 0.152mm-0.203mm
Thickness Tolerance: ±0.005mm
Hardness: 550-580HV
Tensile Strength: 1800Pa
Straightness: ≤0.5mm/3000mm
Dimensions
  • 10mm×0.15mm×100m
  • 30mm×0.15mm×100m
  • 30mm×0.2mm×100m
  • 35mm×0.15mm×100m
  • 35mm×0.2mm×100m
  • 40mm×0.15mm×100m
  • 40mm×0.2mm×100m
  • 50mm×0.15mm×100m
  • 50mm×0.2mm×100m
  • 60mm×0.15mm×100m
  • 60mm×0.2mm×100m
(The listed specifications are standard sizes. Customized dimensions can be provided upon request to meet specific printing requirements.)
Application Processes

Gravure printing, Flexo printing, Roller Coating, Adhesive coating

Ink Types

Water based ink, UV ink, Aggressive inks with high pH value

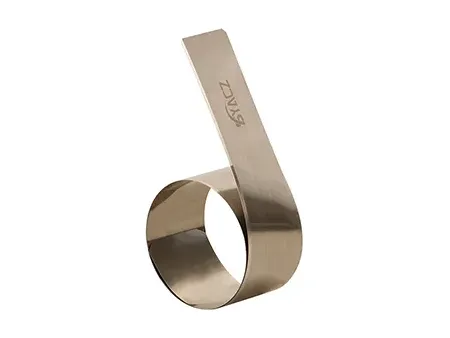

Made from 4028Mo stainless steel, these doctor blades offer excellent resistance to rust and corrosion, providing a reliable solution for demanding printing applications. Their combination of flexibility and durability allows them to handle medium to high-viscosity inks effectively, ensuring smooth and consistent ink transfer. Our 4028Mo stainless steel doctor blades can be used with water-based and high-pH inks, they help maintain print quality by preventing deterioration caused by chemical exposure.
