Hydraulic Butt Fusion Machine, WP1400A
1000-1400mm Plastic Pipe Welding Machine
The butt welding machine is ideal for butt fusion joining of HDPE pipes and fittings.
- Model: WP1400A
- Welding range: 1000-1400 mm
- Standard reducers: 1000-1200-1400 mm
- Optional reducers: 800 mm
- Power supply: 380V/50Hz, 3PH
- Total power: 49.5 kW
- Heating plate: 40.5 kW
- Planing tool: 5.5 kW
- Hydraulic station: 4 kW
- Pressure adjusting range: 0-16 MPa
- Max. temperature of heating plate: 270 ºC
- Temperature deviation: ±10 ºC
- The machine frame is made by using laser-cut steel plate which has undergone high quality welding. This ensures high stability, high dimensional precision, and beautiful appearance.
- The hydraulic station integrates the hydraulic and electric control systems, allowing for easy operation, reliable and stable performance.
- The butt fusion machine is equipped with an externally mounted hydraulic cylinder, which greatly reduces maintenance time. In addition, the cylinder is designed with graphite copper sleeves which provide a smooth contact surface of different parts and reduce the friction force.
- The butt welding machine can be optionally equipped with 3 or 4 clamps, making it suitable for fusing solid wall pipes and corrugated pipes.
- The optional hydraulic control of pipe clamp opening, closing and clamping increases the speed of pipe installation by 60%.
- Data logging device is optional.
-
-
-

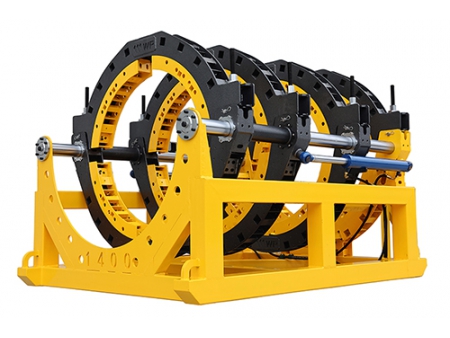

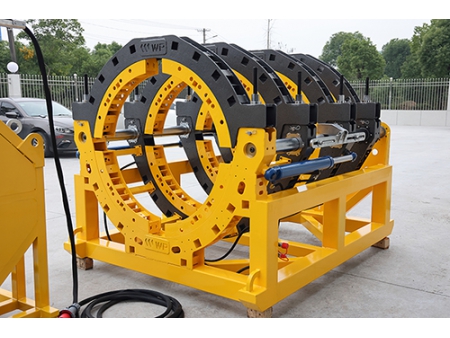

The machine body has high overall integrity and is not easily deformed under heavy loads.
-
-
-
Compared with the cast machine frame, the weight of the frame processed by laser cutting technology is greatly reduced while maintaining high precision and strength, effectively reducing the workload during working.
-
-
-

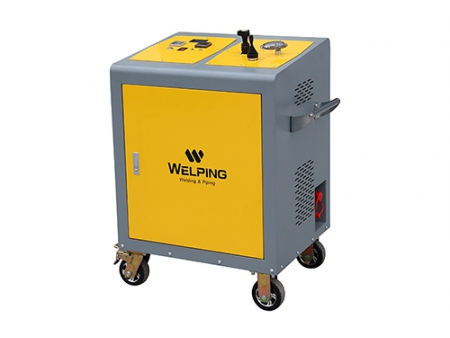

The hydraulic system and the electrical control system are combined together in the hydraulic station, allowing for better coordination and control between the two systems as well as providing reliable and stable performance with easy operation.
-
-
-
Equipped with a heavy-duty transmission chain and a self-tightening system, the butt fusion machine has improved transmission efficiency, providing stable performance with reduced noise.
This plastic pipe welding equipment features a high-quality motor made with copper wiring and a thick cutting disc made of smooth and flat aluminum that is not prone to cracking. Additionally, the cutting blade is made of durable high-strength steel, ensuring a long lifespan and reducing the need for frequent replacements.
-
-
-

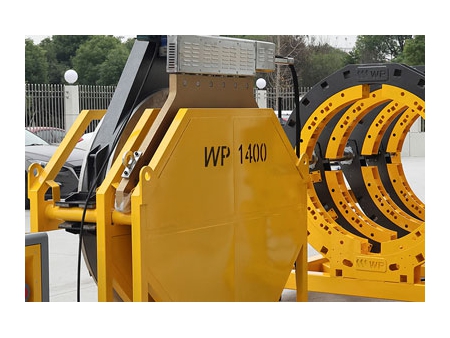

The surface of the heating plate is polished to be flat, smooth, and free of roughness. High-quality heating resistance wires are used to make heating quickly and evenly. The heating element is applied with superior DuPont or Daikin coating.
