Request a Quote

63mm-200mm Plastic Pipe Welding Machine

The butt welding machine performs the process of butt fusion welding of plastic pipes and fittings made from HDPE, PP, PVDF, MPP materials.

  • Model: WP200A
  • Welding range: 63-200 mm
  • Applicable pipe diameters: 63-75-90-110-125-140-160-180-200 mm
  • Power supply: 220 V/50Hz, 1PH
  • Total power: 3.65 kW
  • Heating plate: 1.8 kW
  • Planing tool: 1.1 kW
  • Hydraulic station: 0.75 kW
  • Pressure adjusting range: 0-8 MPa
  • Max temperature of heating plate: 270 ºC
  • Temperature deviation: ±5 ºC
Application

WP200A hydraulic butt fusion equipment is ideal for jointing HDPE, PP, PVDF, MPP pipes.

Features

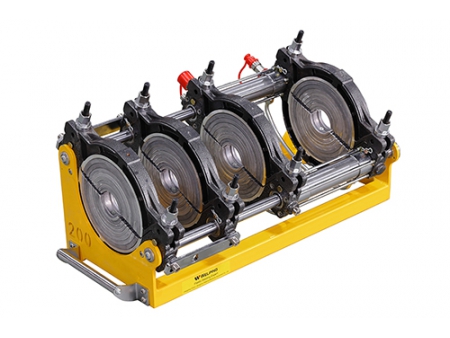

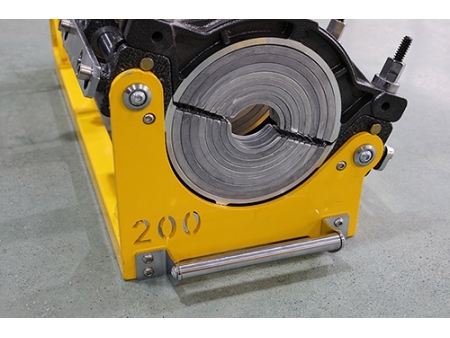

    1. The hydraulic butt fusion machine features a sturdy and distortion-free machine frame which is ideally suitable for heavy-duty operations.

    1. Steel plates of the machine frame are precisely cut to achieve high precision and aesthetic appearance.

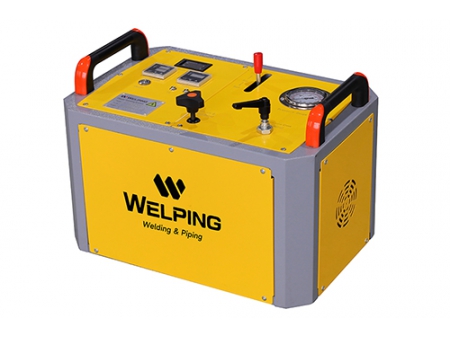

    1. Enclosed hydraulic station is designed to prevent dirt or water. LCD display panel and data logging device are optional upon request.

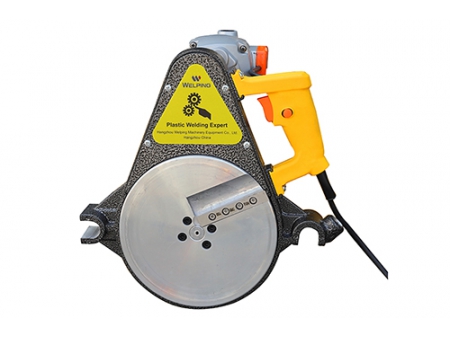

    1. The copper coil motor features a self-locking system for preventing misoperation. Steel reducer inserts have double cutting edges to offer excellent durability and high-speed operations.

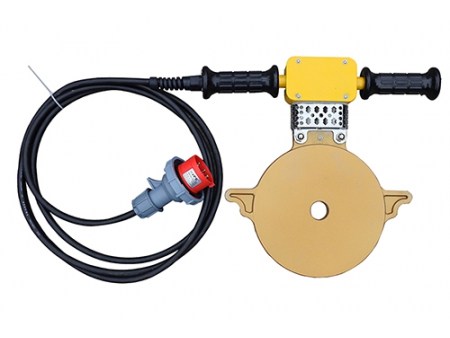

    1. The pipe butt fusion equipment employs superior resistance wire for efficient and even heating performance. The heating element is finished with high-quality Dupont or Daikin coating.
