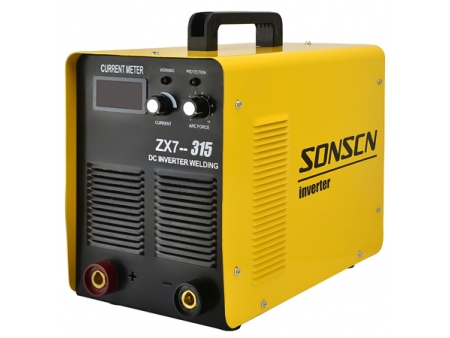

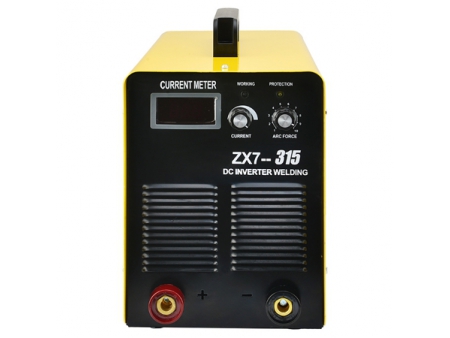

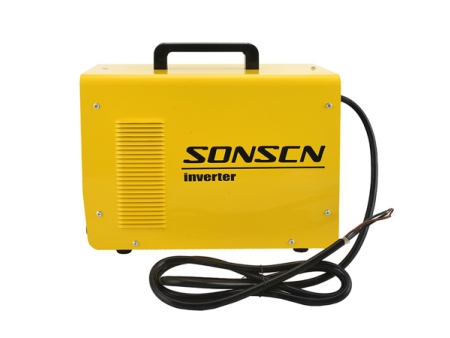

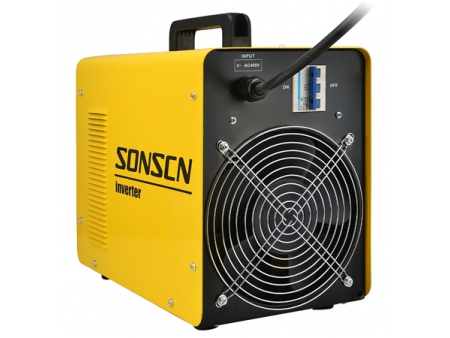

MMA Welder 315/400

MMA Welder 315/400
MMA Welder 315/400
MMA Welder 315/400
MMA Welder 315/400
MMA Welder 315/400
MMA Welder 315/400
Request a Quote

Welding Equipment

Your welding application needs are our concern, satisfying your challenges with proven performance

  • Advanced IGBT inverter technology & PWM control: makes this welder more compact and energy saving, easy to operate and carry.
  • 3-phase 415V input power.
  • Generator compatible: The MMA welder will be able to operate when powered by a generator.
  • Wide range of input voltages & automatic balancing during voltage fluctuations.
  • Hot start & anti-stick & built in arc force: provides quick and easy arc starting, stable welding arc, little splash, low noise.
Model Power Voltage No-load Voltage Efficiency Rated Input Power Output Current Range Duty Cycle Electrode Diameter
Weight Dimension
MMA315 415V (3ph) 80V 85% 12kW 30-315A 60% 1.5-6.0mm(6/25") 12kg 46.8*24.8*35cm
MMA400 415V (3ph) 80V 85% 13.2kW 30-400A 60% 1.5-6.0mm(6/25") 12kg 46.8*24.8*35cm
Features
  • Advanced IGBT inverter technology

    Makes this welder more compact and energy saving, easy to operate and carry.

  • 3-phase 415V input power
  • Generator compatible

    The MMA welder will be able to operate when powered by a generator.

  • Wide range of input voltages & automatic balancing during voltage fluctuations
  • Hot start & anti-stick & built in arc force

    Provides quick and easy arc starting, stable welding arc, little splash, low noise.

  • Premium welding performance

    Suitable for cellulose electrodes such as 6010, 6011, etc.

  • Safety protection

    The welder is equipped with automatic compensation for overload, overheating protection, and over-current protection.

Applications
  • Welding of rutile, alloy steel, stainless steel, iron materials
  • Welding equipment for minor construction projects
Standard Accessories

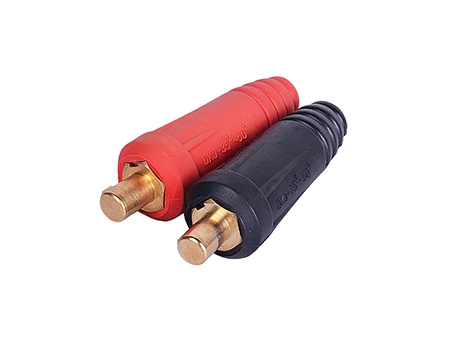

Quick connector
FAQs
This welder features advanced hot start and anti-stick functions, ensuring stable arc, minimal spatter, and low noise.
Equipped with advanced IGBT inverter and PWM control technology, the welder is compact, lightweight, and highly portable.
It can handle welding rods with a diameter range of 1.5-6.0mm(6/25").
SONSCN has become a professional welding equipment manufacturer with over 20 years of production experience. We not only provide welding machines but also offer related welding equipment accessories.
Yes, we provide relevant and additional training resources after purchasing our welding equipment.
Yes, we can provide customization for welding machines and related OEM services, such as welding machine color, size, appearance, packing, performance, parameters, etc., to meet the needs of welding processes.
