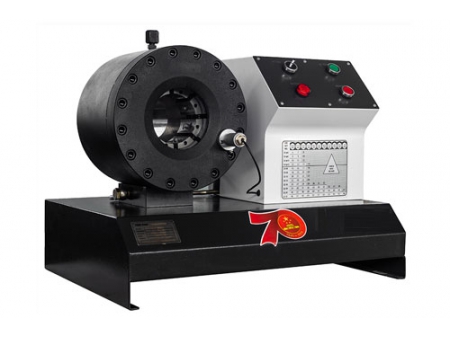

YONG-FENG Y51V Hydraulic Hose Crimper Machine
Application
The YONG-FENG Y51V Hydraulic Hose Crimper Machine is powered by 12V/24V DC, which average vehicle batteries can deliver. The crimp force is 2000kN and the crimp range is 6~73mm. The crimper is equipped with 10 sets of standard dies. It is widely used for crimping high-pressure fuel pipes, industrial hoses, hydraulic hoses and automobile brake cables, metal pipes, steel tubes, etc.
Max. inner diameter
Industrial hoses: 2½"
Hoses with 2 braided wires: 2"
Hoses with 4 spiral wires: 2"
| Crimp head material | FORGE STEEL |
| Crimp range | 6-73mm |
| Hose size | 2", 4SN |
| Passing diameter | 118mm |
| Opening diameter | 118mm |
| Opening | 25mm |
| System pressure | 31.5Mpa |
| Crimp force | 2000kN |
| Drive | 3 kW |
| Standard voltage | 12v/24v |
| Control | Full automatic |
| Standard dies | 10 sets |
| Weight | 165kg |
| L x W x H | 600*460*500mm |
| Customized special die | Included |
| Instruction book | Included |

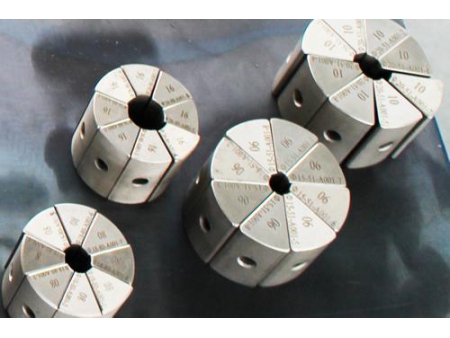

Specification of dies
| No. | Φ6 | Φ8 | Φ10 | Φ13 | Φ16 | Φ19 | Φ25 | Φ32 | Φ38 | Φ51 |
| Crimp range | 15-25mm | 18-28mm | 20-30mm | 23-33mm | 26-36mm | 29-39mm | 37-47mm | 46-56mm | 51-61mm | 63-73mm |
| Length | 45mm | 45mm | 45mm | 50mm | 65mm | 65mm | 80mm | 80mm | 80mm | 80mm |
Feature

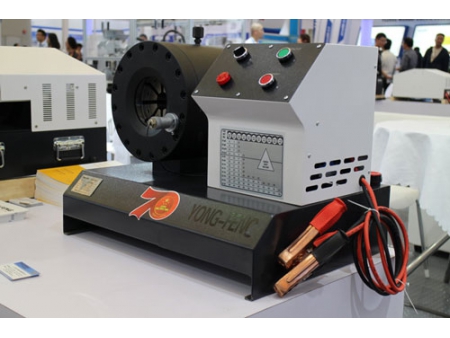

Vehicle mounted crimping machine
Compared with the hand operated model, the vehicle mounted crimper saves manpower and delivers greater stable crimping force. The vehicle mounted crimper has great advantages for mobile mechanical maintenance and outdoor hose crimping with no AC power supply. The YONG-FENG Y51V Hydraulic Hose Crimper Machine is powered by 12V/24V DC so there are few environmental constraints.

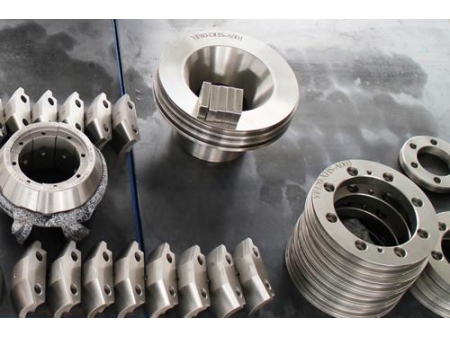

Material
The oil cylinder cover, oil tank and piston rod are made of 40 chromium, with a surface hardness of HRC26-30, which makes the oil tank and piston rod are more durable.
Hydraulic conduction system
With the pipeless valve block connection, the hydraulic conduction system is oil tight with little heat and stable pressure conduction, and greatly improves the performance of the crimping machine.

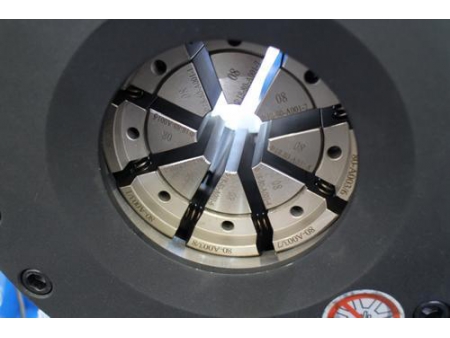

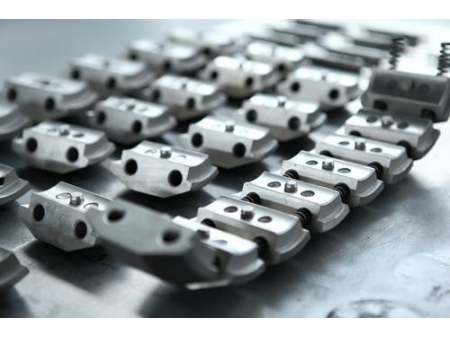

Die connection
Our crimping dies are connected through magnetism, which make it convenient for assembly and disassembly. Also, the magnetic connection enables automatic positioning, and the crimping is neat.
