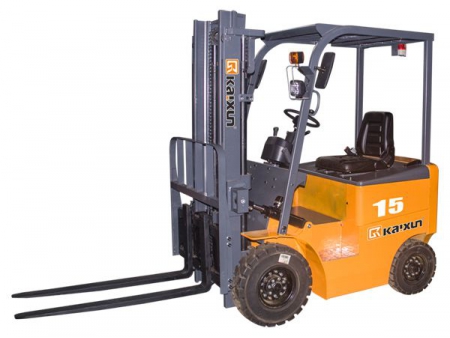

Electric Forklift Truck
Request a Quote
Model
- KX-CPD15
- KX-CPD20
- KX-CPD25
- KX-CPD30
- KX-CPD35
- KX-CPD40
Lifting Capacity
- 1500KG
- 2000KG
- 2500KG
- 3000KG
- 3500KG
- 4000KG
Features

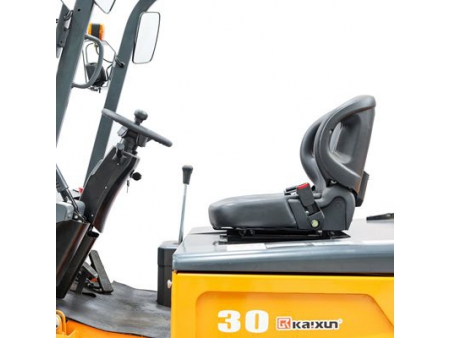

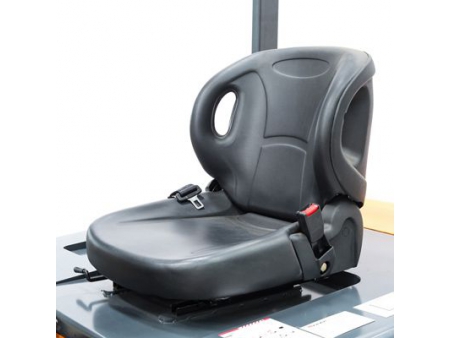

- This sit down forklift is electrically operated, greatly enhancing driver comfort;

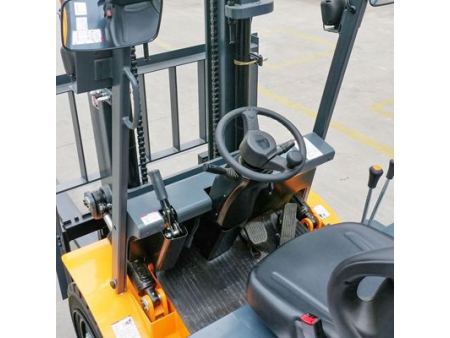

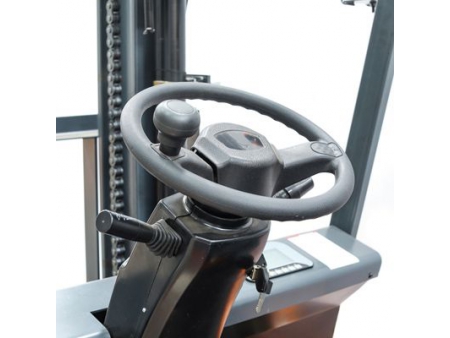

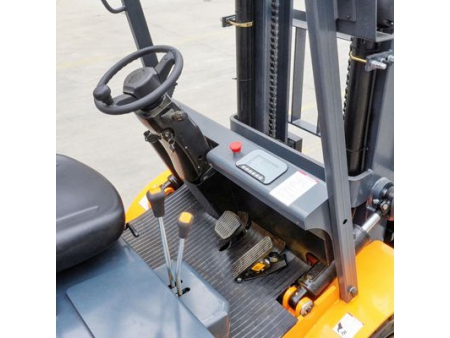

- Control handle is designed with an ergonomic and compact structure, operator can work in stable and effective manner utilizing the control handle;
- High capacity batteries are durable, simple to charge;
- High power DC drive and lift motors provide excellent speed regulation, can work with larger starting and braking torque;

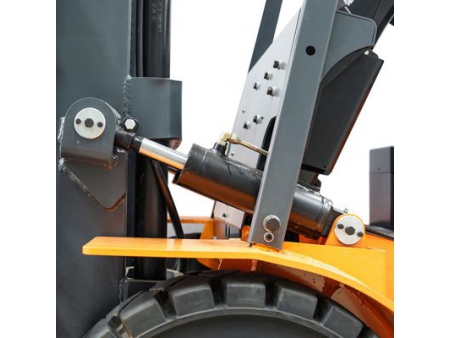

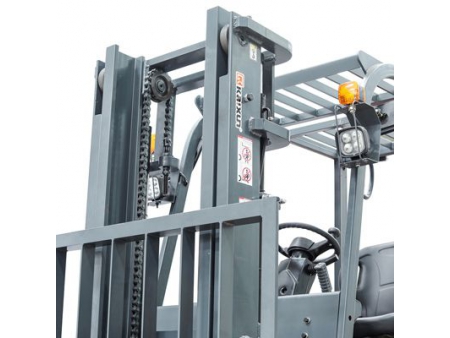

- C-channel steel mast construction ensures robust structure and improved safety;
Technical Data
| Model | Units | KX-CPD15 | KX-CPD20 | KX-CPD25 | KX-CPD30 | KX-CPD35 | KX-CPD40 |
| Rated capacity | Kg | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 |
| Lifting height | mm | 3000 | 3000 | 3000 | |||
| Fork length | mm | 1220 | 1220 | 1220 | |||
| Tilting angle (F/R) | ° | 6/10 | 6/10 | 6/10 | |||
| Overall length | mm | 3218 | 3595 | 3730 | |||
| Overall width | mm | 1080 | 1130 | 1250 | |||
| Overall height | mm | 2070 | 2155 | 2200 | |||
| Ground clearance | mm | 113 | 130 | 130 | |||
| Turning radius | mm | 1900 | 2090 | 2410 | |||
| Wheel base | mm | 1250 | 1521 | 1630 | |||
| Lifting speed (unladen/ laden) | mm/s | 210 | 340 | 340 | |||
| Travel speed (unladen/ laden) | Km/h | 8 | 12 | 12 | |||
| Gradeability (laden) | ° | 15 | 15 | 15 | |||
| Drive motor | kw | 5 | 8 | 11 | 16.5 | ||
| Lift motor | kw | 6.8 | 10 | 12 | 13.5 | ||
| Battery | V/Ah | 24/400 | 48/400 | 48/560 | 48/600 | 80/500 | 80/550 |
| Net weight | Kg | 2330 | 2850 | 3150 | 3920 | 4760 | 5570 |

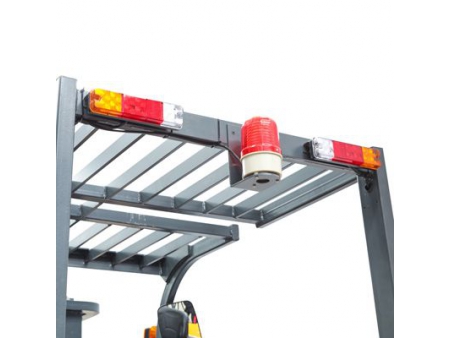

Details
