Fiber Laser Cutting Machine, RJ-3015H
Laser metal cutter for thin to medium-thick sheet metal cutting

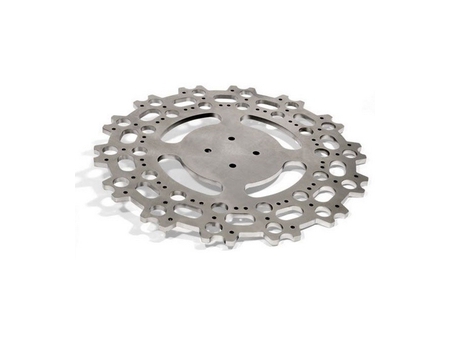

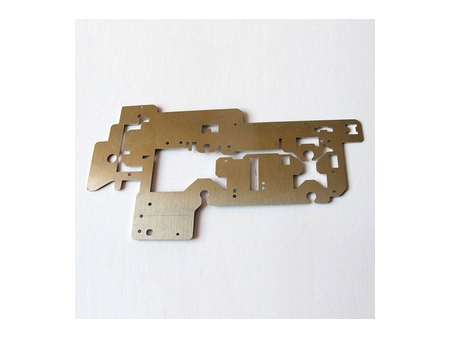

RJ-3015H fiber laser cutting machine is suited for efficiently processing thin to medium-thick sheet metals, it is an ideal metal processing solution for workshops in the metalworking sector that need high cost-effective metal plate cutting machine. This fiber laser cutter is applicable to light fixtures, cookware, decorative materials, machine enclosures, and other applications where sheet metal processing is required.
- Cutting area
- 3000×1500mm
- Laser power
- 2000-6000W (optional)
- Positioning accuracy
- ±0.03mm
- Max. acceleration
- 1.2G
- Repositioning accuracy
- ±0.02mm
- Power supply
- AC 380V, 3-phase, 50/60Hz
- Max. cutting speed
- 70m/min
- Cooling method
- water cooling
-
-
Heavy Duty Welded Bed
The machine bed is constructed with high-strength carbon structural steel by welding. The welded bed has undergone a 600°C heat treatment, efficiently ensuring high durability of structure and enabling it able to last for 20 years without deformation.
-
-
Fourth Generation of Aviation Aluminum Crossbeam
The crossbeam is made from aviation aluminum alloy that has good dynamic performance. The beam is designed with honeycomb structure to provide better structural strength.
-
-
Auto Focus Laser Cutting Head
The laser cutting head allows for automatically adjusting focus lens to an appropriate position by software, thus achieving automatic cutting of sheet metals with different thickness.
-
-
Raycus Laser Source
This laser source directly controls all types of fiber laser functions, realizing synchronous control of laser source.
-
-
Independent Control Cabinet
The control cabinet features a design of dustproof and vibration resistance, efficiently prolonging the service life of electrical components.
-
IPAD Screen Design
Tempered glass panel design provides high definition effect and smooth operation.
-
Newly Developed Laser Head Protective Cover
The laser head is guarded by protective cover which allows for clear observing of red light, good heat dissipation and minimal dust, efficiently avoiding cause the gas path inside the cutting head to burn.
