CNC Tapping Center, Series T-6 CNC Machining Center
Request a Quote
T6 CNC tapping centers feature a small footprint, ultra-compact structure and high-speed ranging from 12,000 to 20,000 RPM. BT30 spindle achieves rigid tapping up to 6,000 RPM. The workbench of this machining center can load as much as 350kg processing items at one time. With a positioning accuracy of ±0.005/300mm, the machined product operations with high precision.
Technical specifications| Model | T-6 |
| Stroke | |
| X-axis travel (mm) | 600 |
| Y-axis travel (mm) | 400 |
| Z-axis travel (mm) | 300 |
| Distance from spindle nose to table center (mm) | 120-500 |
| Worktable | |
| Worktable area (mm) | 700×420 |
| Maximum weight on table (kg) | 350 |
| T-slot (width – number of slot x spacing) (mm) | 5-18×80 |
| Feed | |
| Three-axis rapid feed rate (m/min) | 48/48/48(OP60/60/60) |
| Cutting feed (mm/min) | 1-15000 |
| Spindle | |
| Standard spindle speed (r.p.m) | Belt type15000/20000 |
| Spindle taper | BT30 |
| Spindle power (KW) | 5.5 |
| Others | |
| Three-axis motor power (KW) | 1.5/1.5/3 |
| Positioning accuracy (mm) | ±0.005/300 |
| Repeatability (mm) | ±0.003 |
| Tool storage (pcs) | 16/21 tools |
| Machine weight (kg) | 3300 |
| Machine dimension (mm) | 2200×1850×2450 |

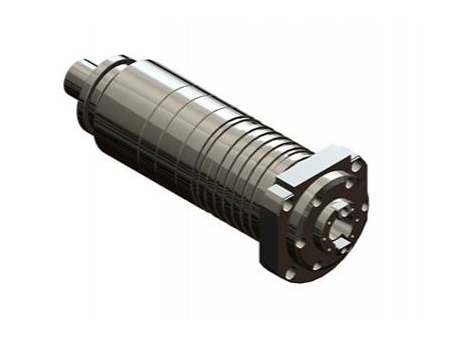

- Mechanical spindle with direct drive
- Disc type tool magazine, capable of assembling 16 tools

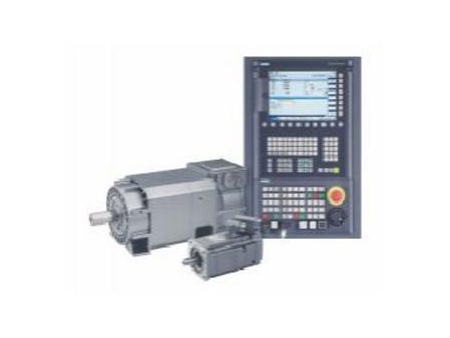

- Control system and motor

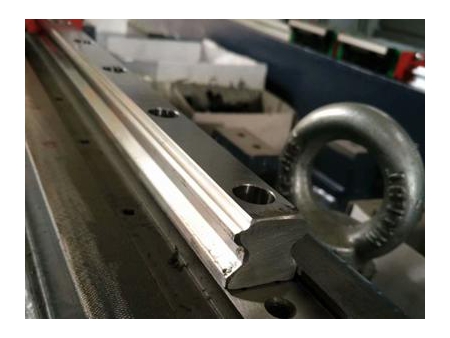

- Linear guideway is running stably, of high machining precision.
