CNC Tapping Center, Series T-8 CNC Vertical Machining Center (VMC)
Request a Quote
The T-8 CNC vertical machining center has a workbench area of 1100*510mm and a standard spindle speed of 24000r.p.m. Its X-axis travel, Y-axis travel and Z-axis travel is 1050mm, 500mm and 320mm respectively. And its positioning accuracy reaches up to 0.008mm, and it is mainly applicable to the machining of spare parts and molds.
Technical specifications| Model | T-8 |
| Stroke | |
| X-axis travel (mm) | 1050 |
| Y-axis travel (mm) | 500 |
| Z-axis travel (mm) | 320 |
| Distance from spindle nose to table center (mm) | 150-470 |
| Distance between spindle center to column surface (mm) | 572 |
| Worktable | |
| Worktable Area (mm) | 1100*510 |
| Maximum weight on table (kg) | 300 |
| Worktable T-slot qty./size (mm) | 3-14*125 |
| Spindle | |
| Standard spindle speed (r.p.m) | 50-20000 (24000) |
| Spindle taper | BT-30 |
| Spindle power (Kw) | 5.5 |
| Feed | |
| Cutting Speed (mm/min) | 1-20000 |
| X-axis rapid feed rate (m/min) | 48 |
| Y-axis rapid feed rate (m/min) | 48 |
| Z-axis rapid feed rate (m/min) | 36 |
| Others | |
| Three-axis motor power (kw) | 2.2/2.2/3.0 |
| Positioning accuracy (mm) | 0.008 |
| Repeatability (mm) | 0.005 |
| Tool storage (pcs) | 21 |
| Machine weight (approx.) kg | 4300 |
| Maximum tool weight (kg) | 3 |
| Tool length (mm) | 200 |
| Max. Diameter (mm) | 60/80 |
| Machine tank capacity (L) | 170 |
| Working pressure (Mpa) | ≥0.6 |
| Total power (kva) | 13.5 |
| Dimension (L*W*H) mm | 2480*2850*2550 |

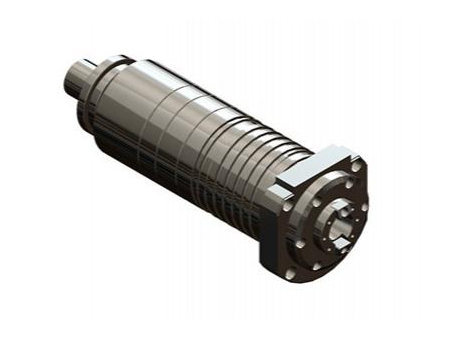

- Mechanical spindle with direct drive
- Disc type tool magazine, capable of assembling 16 tools

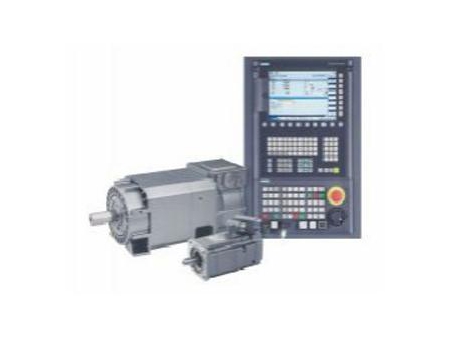

- Control system and motor

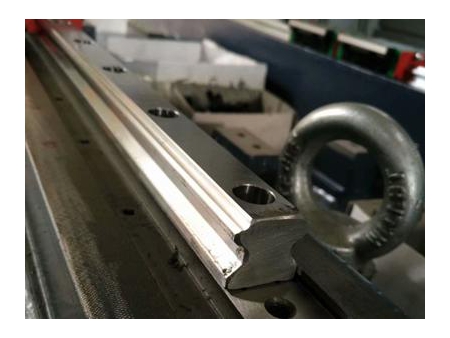

- Linear guideway is running stably, of high machining precision.
