TEFC VHS Motor

Request a Quote

Website: http://semc-motors.com/1-1-3-tefc-vhs-motor.html

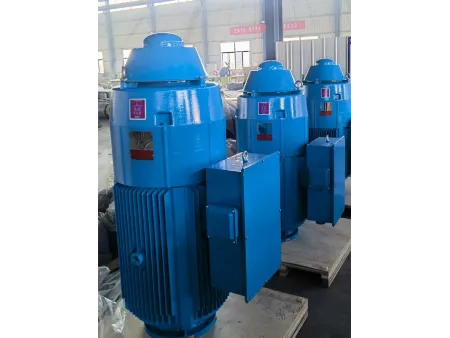

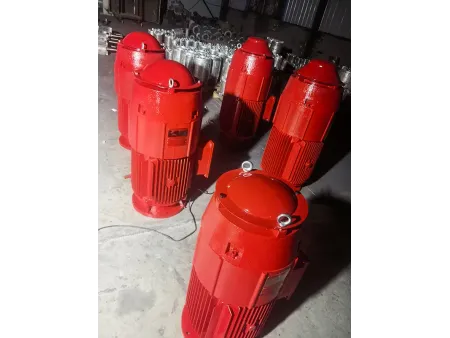

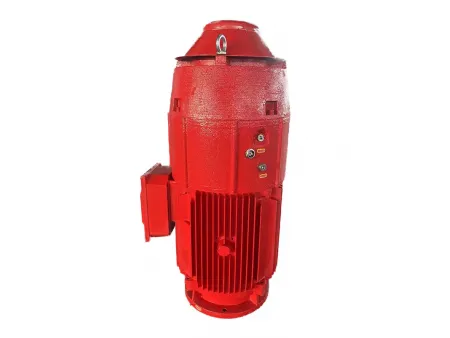

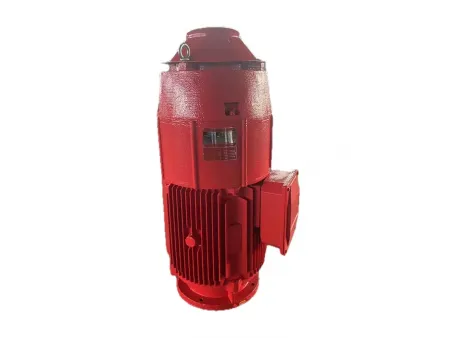

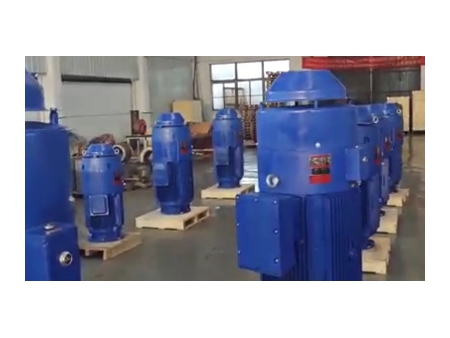

Vertical hollow shaft pump motor with totally enclosed fan-cooled (TEFC) enclosure

Our TEFC VHS motors, equipped with a totally enclosed fan-cooled (TEFC) enclosure, is suitable for humid environments requiring deep wells or cases requiring high protection. This type of motors is primarily used with fire pumps and deep well pumps for various applications, including deep wells, mines, power stations, and agricultural irrigation.

Service factor: 1.15
Frequency: 60Hz
Speed: 1800/3600RPM
Voltage: 230/460/690V
Protection degree: TEFC
NEMA design, special balancing
Equipped with steel ball type anti-reverse mechanism
Altitude: 1000-2000m
Efficiency: Premium Efficiency (super high efficiency)
Material: Cast steel
Mounting type: Vertical P-Base
Shaft position: Vertical
PWS, special balancing
Startup mode: Star delta starter/VFD/soft starter
Wide voltage range: 300-460V
Insulated thrust bearings (Optional): TMB (standard), NSK, SKF, and FAG
Warranty: 1-2 years
Ambient temperature: 50-60℃
Altitude: 1000-2000m

Key Features

Enclosed design prevents air exchange between the motor’s interior and exterior, with a rotor fan circulating internal air to transfer heat to enclosed components and an external fan blowing ambient air over the motor for effective cooling.

Material and lubrication system

Oil-lubricated motors ship with empty bearing oil reservoirs; bearings retain a thin oil film, but reservoirs must be filled after three months of storage, with prominent labeling advised to avoid improper operation, oil leaks, or damage to internal parts.
Two angular contact ball thrust bearings at the motor’s top manage upward or downward thrust, while a lower radial ball bearing handles pump-induced radial loads.

Corrosion-resistant materials

Motor body features cast steel, oxygen-free copper windings, and a squirrel-cage rotor with integrated upper and lower cooling fans.
Paired vertical turbine pumps use heat-resistant ductile iron, 2Cr13 stainless steel, or 304/316 stainless steel, ideal for impure or corrosive water.
Geothermal deep-well pumps incorporate slender pump bodies with high-temperature, corrosion-resistant materials, withstanding high-pressure subsurface conditions.

Specifications

Model	Rated Power (HP)	Frame	Speed (RPM)	Rated Voltage (V)	Efficiency (%)	Axial Thrust Load (Ibs)	Frame Diameter (in)	Weight (Ibs)
VHS213TP-2-0075P2	7.5	213TP	3600	230/460	88.9	2000	10	302
VHS215TP-4-0075P2	7.5	215TP	1800	230/460	91.4	2500	10	302
VHS213TP-2-010P2	10	213TP	3600	230/460	89.9	2000	10	340
VHS215TP-4-010P2	10	215TP	1800	230/460	92.1	2500	10	340
VHS215TP-2-015P2	15	215TP	3600	230/460	90.6	2000	10	448
VHS254TP-4-015P2	15	254TP	1800	230/460	93.4	3200	10	583
VHS254TP-2-020P2	20	254TP	3600	230/460	91.4	2500	10	596
VHS256TP-4-020P2	20	256TP	1800	230/460	93.4	3200	10	621
VHS256TP-2-025P2	25	256TP	3600	230/460	92.1	2500	10	646
VHS284TP-4-025P2	25	284TP	1800	230/460	94.0	3200	10	658
VHS284TP-2-030P2	30	284TP	3600	230/460	92.1	2500	10	674
VHS286TP-4-030P2	30	286TP	1800	230/460	94.5	3200	10	698
VHS286TP-2-040P2	40	286TP	3600	230/460	92.8	2500	10	728
VHS324TP-4-040P2	40	324TP	1800	230/460	94.5	5500	16.5	937
VHS324TP-4-040P2	40	324TP	1800	460	94.5	5500	16.5	937
VHS324TP-2-050P2	50	324TP	3600	230/460	93.4	4290	16.5	956
VHS324TP-2-050P2	50	324TP	3600	460	93.4	4290	16.5	956
VHS326TP-4-050P2	50	326TP	1800	230/460	94.9	5500	16.5	989
VHS326TP-4-050P2	50	326TP	1800	460	94.9	5500	16.5	989
VHS326TP-2-060P2	60	326TP	3600	230/460	94.0	4290	16.5	1030
VHS326TP-2-060P2	60	326TP	3600	460	94.0	4290	16.5	1030
VHS364TP-4-060P2	60	364TP	1800	230/460	95.4	5600	16.5	1140
VHS364TP-4-060P2	60	364TP	1800	460	95.4	5600	16.5	1140
VHS364TP-2-075P2	75	364TP	3600	230/460	94.0	4400	16.5	1162
VHS364TP-2-075P2	75	364TP	3600	460	94.0	4400	16.5	1162
VHS365TP-4-075P2	75	365TP	1800	230/460	95.4	5600	16.5	1192
VHS365TP-4-075P2	75	365TP	1800	460	95.4	5600	16.5	1192
VHS365TP-2-100P2	100	365TP	3600	230/460	94.0	4400	16.5	1226
VHS365TP-2-100P2	100	365TP	3600	460	94.0	4400	16.5	1226
VHS404TP-4-100P2	100	404TP	1800	230/460	95.8	6700	16.5	1638
VHS404TP-4-100P2	100	404TP	1800	460	95.8	6700	16.5	1638
VHS404TP-2-125P2	125	404TP	3600	230/460	94.5	5265	16.5	1646
VHS404TP-2-125P2	125	404TP	3600	460	94.5	5265	16.5	1646
VHS405TP-4-125P2	125	405TP	1800	230/460	95.8	6700	16.5	1700
VHS405TP-4-125P2	125	405TP	1800	460	95.8	6700	16.5	1700
VHS405TP-2-150P2	150	405TP	3600	230/460	94.5	6285	16.5	1755
VHS405TP-2-150P2	150	405TP	3600	460	94.5	6285	16.5	1755
VHS444TP-4-150P2	150	444TP	1800	230/460	96.2	8000	16.5	2256
VHS444TP-4-150P2	150	444TP	1800	460	96.2	8000	16.5	2256
VHS445TP-4-200P2	200	445TP	1800	230/460	96.2	8000	16.5	2438
VHS445TP-4-200P2	200	445TP	1800	460	96.2	8000	16.5	2438
VHS445TP-4-250P2	250	445TP	1800	230/460	96.2	8000	16.5	2588
VHS445TP-4-250P2	250	445TP	1800	460	96.2	8000	16.5	2588
VHS447TP-4-300P2	300	447TP	1800	460	96.2	8000	20	2990
VHS5006P-4-300P2	300	5006P	1800	460	96.2	8750	20	3946
VHS5006P-4-350P2	350	5006P	1800	460	96.2	8750	20	4057
VHS5008P-4-400P2	400	5008P	1800	460	96.2	8750	24.5	5302
VHS5008P-4-450P2	450	5008P	1800	460	96.6	8750	24.5	5483
VHS5008P-4-500P2	500	5008P	1800	460	96.6	8750	24.5	5655
VHS5807P-4-600P2	600	5807P	1800	460	96.6	9680	30.5	6872
