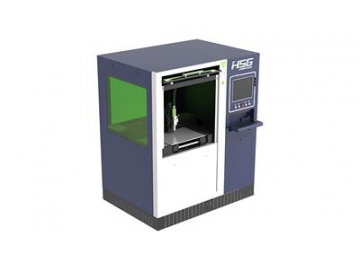

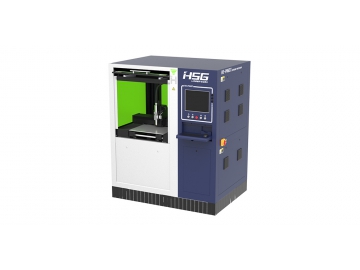

P0637 High Precision Fiber Laser Cutting Machine

Request a Quote

View All: http://delta-eagle.com/3-1-4-high-precision-fiber-laser-cutting-machine.html

Introduction

With a totally-enclosed protective shield, the P0637 high precision fiber laser cutting machine features a compact design that takes up less space, and also offers a small processing width. It features a high precision and high quality processing, resulting in smooth, burr free surfaces, making it ideal for high precision cutting of metal sheets.

Application

Applicable materials: stainless steel, carbon steel, aluminum, brass, copper, galvanized plate, cold-rolled sheet and more.

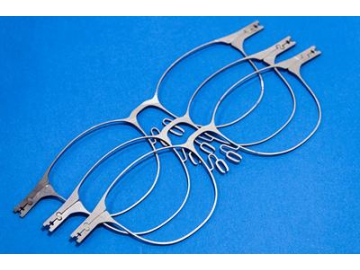

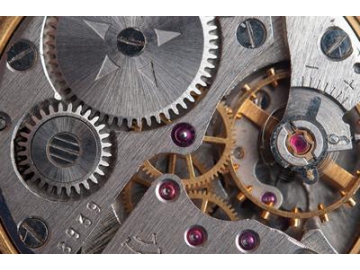

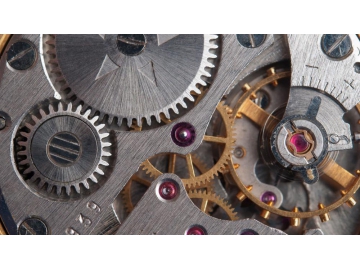

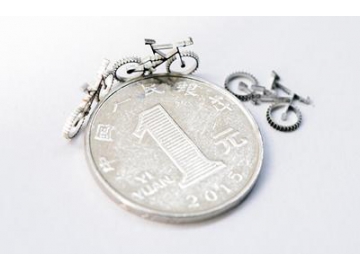

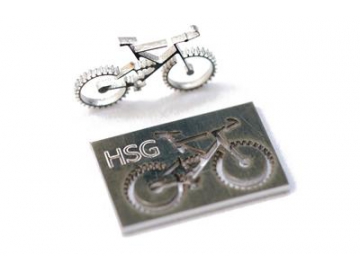

Application industry: This laser cutter is used for the processing of precision components such as glasses and instruments.

Technology parameter

Processing Area	600mm×370mm
Laser power	500W-1000W
Max. Cutting Speed	40m/min
Max. accelerated	0.3G
X/Y Positioning Accuracy	0.05mm/m
X/Y Repeated Positioning Accuracy	±0.05mm
Power supply	380V 50Hz
Whole machine weight	800Kg
Machine dimensions	1700mm×1190mm×1850mm

* We offer lasers in a variety of powers. The material and thickness levels to be cut directly depend on the laser power.

Compatible Materials

Stainless steel
Carbon steel
Galvanized steel
Cold rolled steel
Titanium
Electrolytic steel

Component characteristics

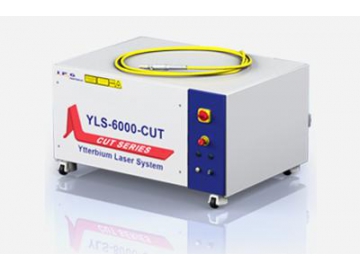

Laser system
IPG High power fiber laser system features powerful cutting ability.

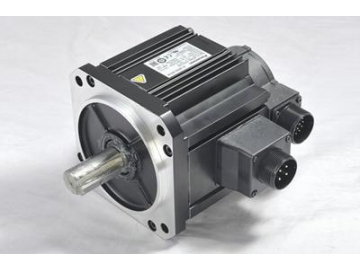

Servo motor
The electric and drive systems provided by Japan Panasonic Denki offer customers a faster rotation speed and better stability.
