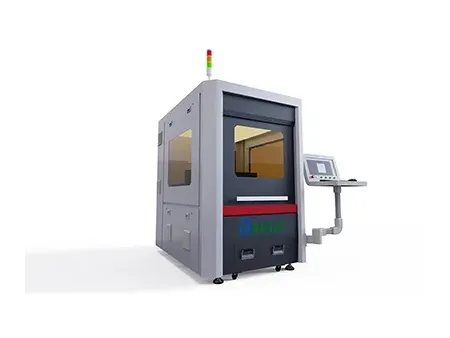

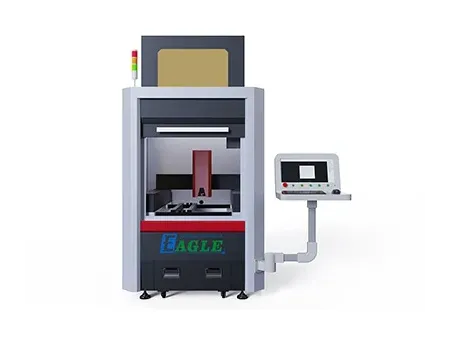

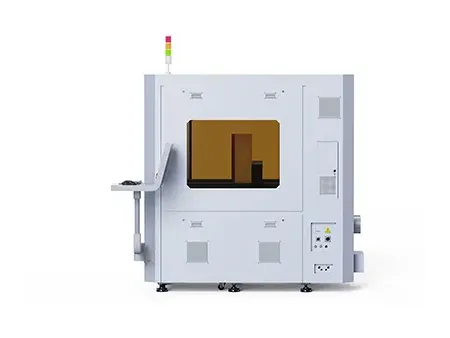

High Precision Fiber Laser Cutting Machine
The high precision metal laser cutting machine offers an excellent customized solution for small-format,low-volume, high-precision processing of metal sheets and tubes. It is capable of precisely cutting materials such as carbon steel, stainless steel, tinplate, galvanized sheet, aluminum, and copper.
This laser cutting machine is widely used in industries with applications requiring high precision and detailed work, such as jewelry, eyewear accessories, metal part prototyping, small batch trial production, and the processing of irregularly shaped parts. Its ability to deliver custom cutting solutions tailored to specific small-scale production requirements sets it apart, offering flexibility for businesses needing specialized, high-quality cuts.
-
- Laser cutting of carbon steel workpiece
-
- Laser cutting of brass jewelry
-
- Laser cutting of stainless steel nameplate
-
- Laser cutting of carbon steel part
| Working Area | 600×600mm |
| Max. Workpiece Height | 900mm (able to accommodate special workpieces by placing on the ground, and support processing cylindrical items using rotary axis) |
| Working table | Slat cutting table |
| Laser Source | Fiber laser |
| Laser Power | 1500W / 2000W / 3000W |
| Software | CypCut CAD/CAM, compatible with Windows 7/8/10 (32-bit or 64-bit) |
| Data Interface | USB port |
| Operating Mode | Cutting |
| Control Interface | Industrial computer based on Windows operating system |
| Motion System | Utilizing high precision linear guide rail, imported servo motor and ball screw transmission system |
| Auxiliary Equipment | Air pressure regulating valve, industrial water chiller, exhaust fan |
| Power supply | Single phase, 220V/60Hz (for 3000W laser power: 3 phase, 380V/60Hz) |
| Dimensions | 1700×2200×2200mm |
| Weight | 1000kg |
- Accurate Motion System
The motion system is driven by imported servo motors, coupled with an imported high-precision ball screw transmission and guided by imported linear guides. This combination ensures high-speed, high-precision motion with excellent responsiveness and stability.
- CypCut CAD/CAM Laser Cutting Control Software
CypCut CAD/CAM control software, based on the Windows operating system, supports multiple industrial processing file formats. It includes common editing and layout functions, with full-sheet nesting capabilities, as well as specialized laser cutting processes and control functions.
- Superior Laser Source
The high precision laser cutting machine is equipped with a high-performance fiber laser source, with a 1500W option suitable for thin sheet processing and a 3000W option for thicker materials. It is particularly effective for cutting highly reflective materials such as aluminum and copper, providing superior cutting results.
- Laser cutting head
The precision laser cutting head is specifically designed for fiber laser cutting. It boasts a sophisticated mechanical structure, high-quality collimating and focusing lens, an easy-to-use focusing structure, and protective lenses. The laser cutting head offers high precision, low absorption, stable, and reliable performance.
- Robust Working Table
The high-strength machine frame, constructed with square tube welding, is complemented by a flat, sturdy, and durable granite worktable. This ensures high precision, stability, and durability even during high-speed motion. The fully enclosed machine housing provides excellent operational safety and enhances the efficiency of smoke extraction during processing.
- Advanced Z Axis Track
The compact Z-axis motion unit, paired with a high-precision, responsive, and reliable Z-axis tracking control system, ensures the laser cutting machine maintains excellent cutting performance over prolonged periods.
- Laser Cutting Control System
The FSCUT laser cutting motion control system, combined with an industrial control computer, provides a high-performance motion control foundation. It is equipped with high-quality electrical components for reliable operation.
- Auxiliary Gas Control System
Auxiliary gas is a critical factor in the metal laser cutting process. Our high precision laser cutting machine uses a dual independent control system for high and low pressure, with a high-precision pressure regulator on the low-pressure circuit. The gas path automatically switches according to material and process requirements, optimizing the cutting process and ensuring consistent quality.
This laser cutting machine is suitable for precision cutting of materials such as carbon steel, stainless steel, tinplate, galvanized sheet, aluminum, and copper.
It is more suitable for applications such as jewelry making, eyewear accessories, metal part prototyping, and small batch trial production.
