Modular Vacuum Blood Collection Tube Assembly Line

Request a Quote

View All: http://medical-machinery.com/1-1-6-modular-vacuum-blood-collection-tube-assembly-line.html

8,000-12,000 pcs/h

Modular type, more feasible for upgrading in future expanding

Production capacity 8,000-12,000 pcs/h
Tube size Ø13×75mm, Ø13×100mm, Ø16×100mm, customizable
(available in PET, PP, glass)
Cap size As per client’s samples

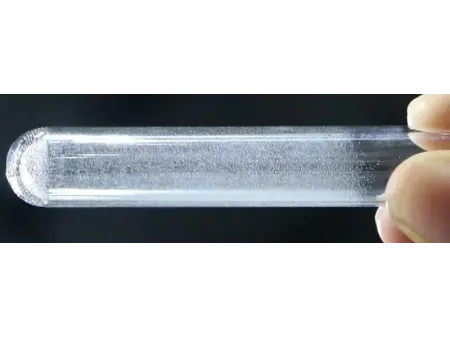

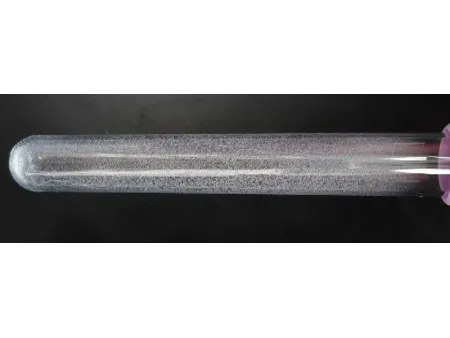

Finished Product Samples

The modular design of this blood collection tube assembly line allows for flexible production of 8,000 to 12,000 blood collection tubes per hour. The assembly system only requires few modules that are simply configured at the beginning stage, and other modules can be gradually increased to upgrade it into a fully automatic line when the manufacturing plant needs to be expanded in future.

Work Flow

Inversion detection

Additive dosing (EDTA, heparin, clot activator, sodium citrate)

Capping

Vacuuming

Foam tray loading

Heat shrink packaging

Completion

Technical Specifications

Model	H100AM
Production capacity	8,000-12,000 pcs/h
Tube size	Ø13×75mm, Ø13×100mm, Ø16×100mm, customizable (available in PET, PP, glass)
Cap size	As per client’s samples
Control system	PLC control with touch screen
Additive dosing system	K2/K3 EDTA: 10 sets of precision ceramic pump
	Blood clot activator (BCA): 10 sets of precision ceramic pump
	Sodium citrate: 5 sets of precision ceramic pump
Additive drying system	3 PTC dust-free drying machines
Detection system	Inverted tube detection before additive dosing
Detection system	Alarm for shortage of foam trays
Vacuum degree	Equipped with Leybold vacuum pump (Germany) and SMC vacuum control system (Japan)
Air consumption	Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa
Power	20kW/AC380V
