Non-Vacuum Blood Collection Tube Assembly Line
Request a Quote
2,000-4,000 pcs/h
Blood collection tube assembly machine for non-vacuum blood collection tubes
- Production capacity 2,000-4,000 pcs/h
- Tube size Ø13×75mm, Ø13×100mm, customizable
(available in PET, PP, glass) - Cap size As per client’s samples
Finished Product Samples
The medical supplies assembly line we offer is tailored for the production of disposable non-vacuum blood collection tubes, focusing on tube sizes 13×75mm and 13×100mm. The system is designed to provide consistent performance, ensuring accurate dosing and reliable assembly. By automating key steps in the process, it helps manufacturers meet the demands of the medical industry while maintaining efficiency and quality.
Work Flow

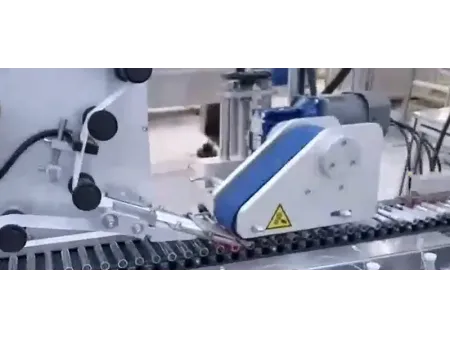

- Labeling

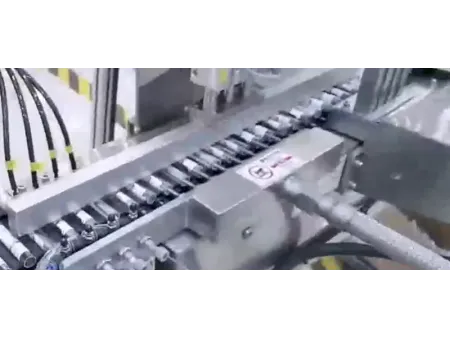

- Additive dosing (EDTA, heparin, clot activator)
- Additive drying
- Capping
- Completion.
Technical Specifications
| Model | 150BF |
| Production capacity | 2,000-4,000 pcs/h |
| Tube size | Ø13×75mm, Ø13×100mm, customizable |
| Cap size | As per client’s samples |
| Control system | PLC control with touch screen |
| Additive dosing system | K2/K3 EDTA: 4 sets of precision ceramic pump |
| Blood clot activator (BCA): 4 sets of precision ceramic pump | |
| Additive drying system | PTC dust-free drying machine (8 nozzles) |
| Air consumption | Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa |
| Power | 10kW/AC380V |
