Modular Non-Vacuum Blood Collection Tube Assembly Line
Request a Quote
View All: http://medical-machinery.com/1-2-3-modular-non-vacuum-blood-collection-tube-assembly-line.html
8,000-10,000 pcs/h
Blood collection tube assembly machine for non-vacuum blood collection tubes
- Production capacity 8,000-10,000 pcs/h
- Tube size Ø13×75mm, Ø13×100mm, customizable
(available in PET, PP, glass) - Cap size As per client’s samples
Finished Product Samples
With its modular design, clients can buy only some modules at the beginning stage, then add other modules gradually to upgrade it into a fully automatic line when the manufacturing plant needs to be expanded in future.
This assembly line allows manufacturers to reach a production capacity of 8,000 to 10,000 non-vacuum blood collection tubes per hour. The system is perfectly suited for the automated production of 13×75mm and 13×100mm non vacuum tubes (PP or PS).
Work Flow
- Inversion detection

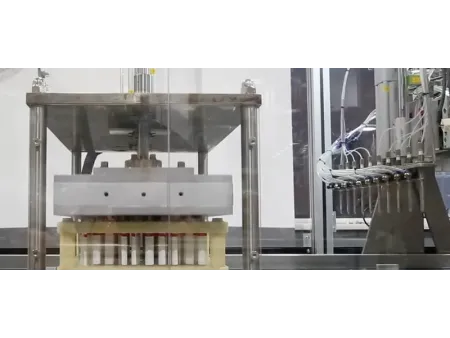

- Additive dosing (EDTA, heparin, clot activator, sodium citrate)
- Capping

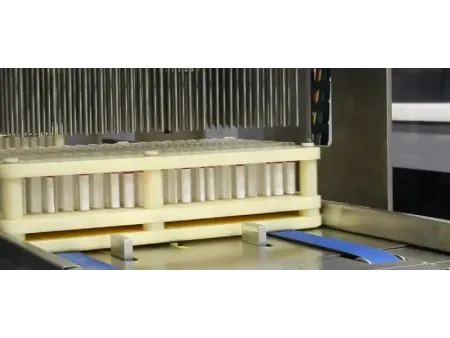

- Foam tray loading
- Heat shrink packaging
- Completion
Technical Specifications
Model | 100AM |
Production capacity | 8,000-10,000 pcs/h |
Tube size | Ø13×75mm, Ø13×100mm, customizable |
Cap size | As per client’s samples |
Control system | PLC control with touch screen |
Additive dosing system | K2/K3 EDTA: 10 sets of precision ceramic pump |
Blood clot activator (BCA): 10 sets of precision ceramic pump | |
Sodium citrate: 5 sets of precision ceramic pump | |
Additive drying system | 3 PTC dust-free drying machines |
Detection system | Inverted tube detection before additive dosing |
Alarm for shortage of foam trays | |
Air consumption | Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa |
Power | 20kW/AC380V |
