Non-Vacuum Blood Collection Tube Assembly Line

Request a Quote

Website: http://medical-machinery.com/1-2-2-non-vacuum-blood-collection-tube-assembly-line.html

3,000-4,000 pcs/h

Blood collection tube assembly machine for non-vacuum blood collection tubes

Production capacity 3,000-4,000 pcs/h
Tube size Ø13×75mm, Ø13×100mm or customizable
(available in PET, PP, glass)
Cap size As per client’s samples

Finished Product Samples

Designed for high-efficiency assembly of non-vacuum blood collection tubes, this assembly system operates at a speed of 3,000 to 4,000 tubes per hour. Equipped with precision ceramic pumps, it ensures accurate additive dosing. It delivers precise and reliable manufacturing for various non-vacuum blood collection tubes.

Work Flow

Tube loading

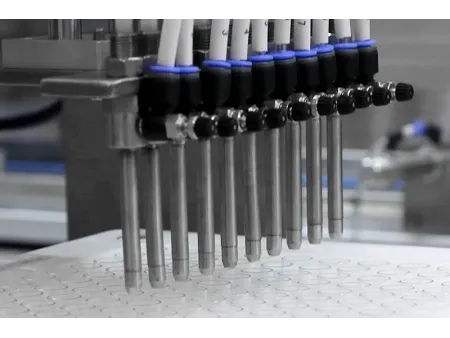

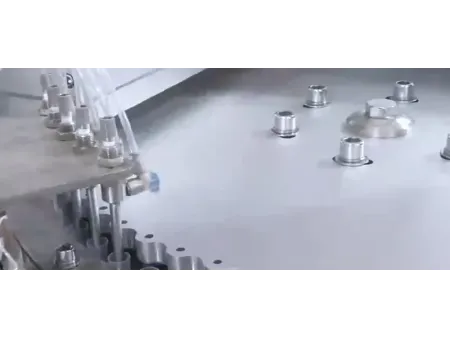

Additive dosing (EDTA, heparin, clot activator, sodium citrate)

Additive drying

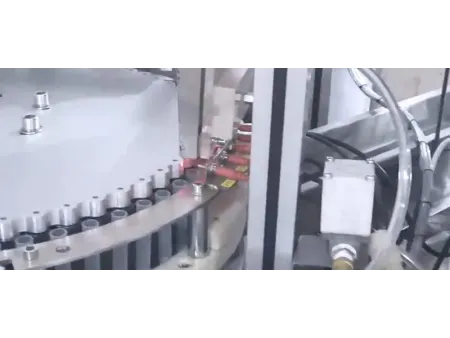

Capping

Completion

Technical Specifications

Model	60BF
Production capacity	3,000-4,000 pcs/h
Tube size	Ø13×75mm, Ø13×100mm or customizable (available in PET, PP, glass)
Cap size	As per client’s samples
Control system	PLC control with touch screen
Additive dosing system	K2/K3 EDTA: 4 sets of precision ceramic pump
	Blood clot activator (BCA): 4 sets of precision ceramic pump
	Sodium citrate: 4 sets of precision ceramic pump (100-650μL ±6%)
Additive drying system	PTC dust-free drying machine (8 nozzles)
Air consumption	Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa
Power	12kW/AC380V
